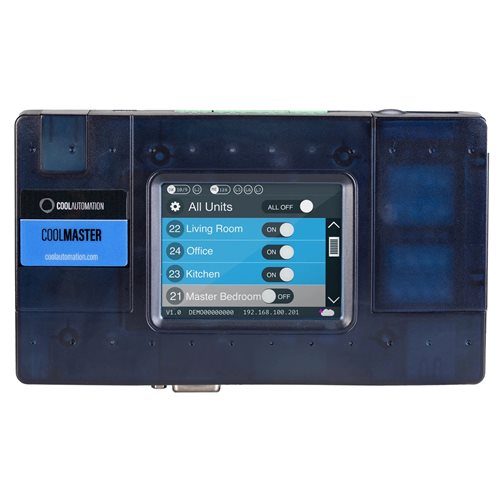

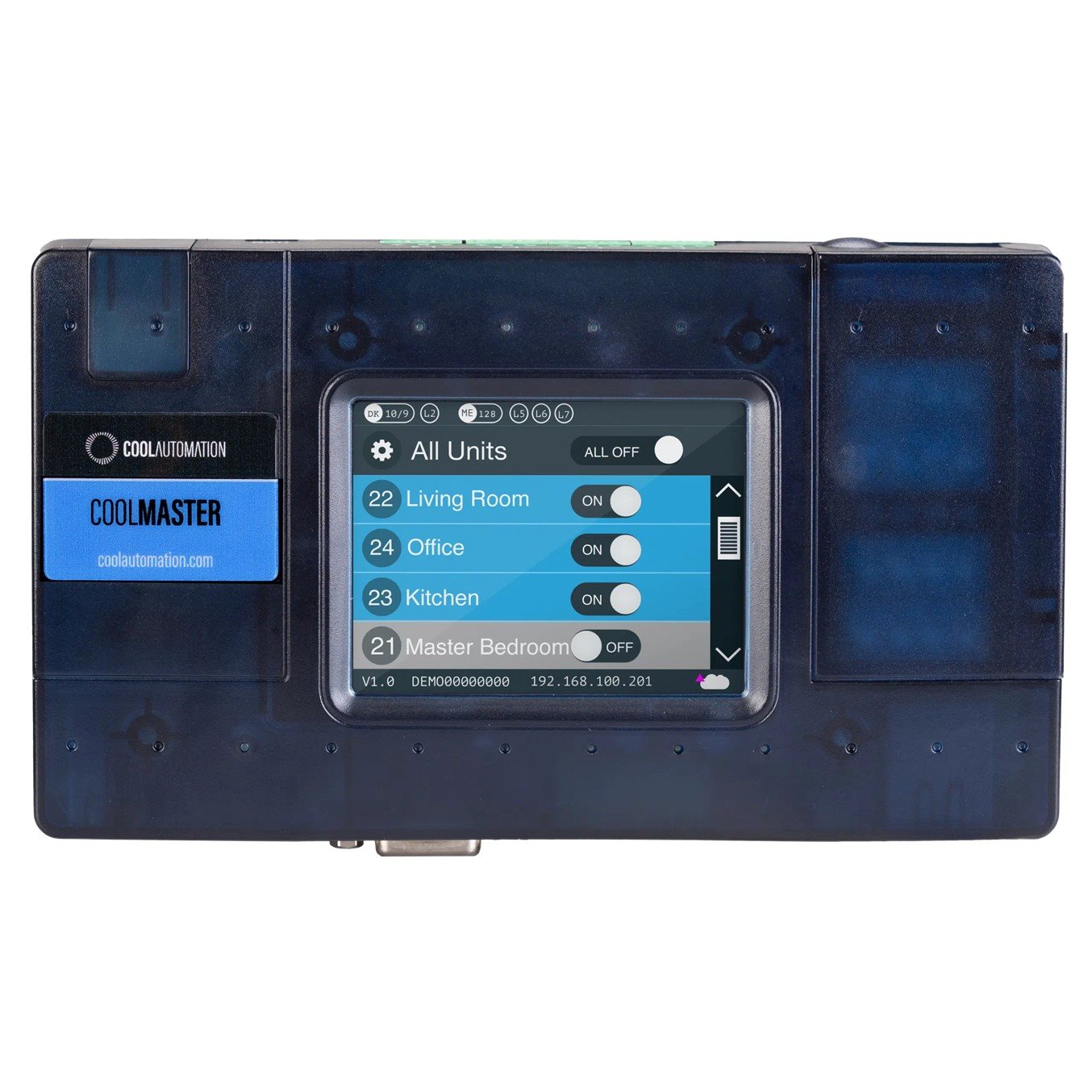

CoolMaster Universal HVAC Bridge

A universal solution for VRF HVAC system control and integration with Building Management Systems (BMSs) and home automation.

The CoolMaster Product Line allows home automation specialists, building automation integrators, facility managers and HVAC professionals to integrate, control, remotely monitor, service, and manage any VRF or VRV HVAC system through a single interface.

CoolMaster gateways are plug-and-play solutions that do not require prior HVAC technical knowledge to install. Simply unbox, ensure the device is configured to the right HVAC brand using the built-in display, connect as indicated, and... that’s it.

How It Works

VRF\VRV systems are designed with a closed communication loop between condensers and evaporators. These communication loops vary from one manufacturer brand to another. Traditionally, controlling and integrating VRF HVAC systems requires a brand-specific mediation device, as each manufacturer uses its own communication protocol.

With a CoolMaster, you don’t need to implement a different integration logic or acquire a separate device for systems from different brands. CoolMaster gateways natively connect with systems of all brands and provide a unified interface for integrating HVAC control and monitoring capabilities into your preferred home automation or building management system.

Each CoolMaster creates a bi-directional, universal communication channel between VRF HVAC and automation systems, enabling integrators and HVAC professionals to:

• Perform native VRF HVAC integration with home and building automation systems
• Use CoolAutomation’s application suites, which include tools for VRF system management, monitoring, diagnostics, and control.
• Connect VRF HVAC systems to leading smart home platforms (such as Apple Home and Alexa), voice assistants, IoT devices, and smart thermostats.

Features

• Universal interface with VRF HVAC systems of all major brands
• Native out-of-the-box integration with all home automation platforms
• Supports all standard protocols for a simple integration with Building Management Systems (BMSs)
• Intuitive mobile application for remote control and basic scheduling included
• Enables access to CoolAutomation's professional application suites
• Native integration with leading smart home platforms including Apple Home, Josh.ai, Alexa, smart thermostats, and more
• Automatic driver detection and connection to all home automation systems
• Seamless connection of multi-brand HVAC systems brands over several lines using a single device
• Broad communication protocols support, including Modbus RTU, Modbus IP, BACnet MSTP, BACnet IP, ASCII, and REST API
• Touchscreen display for simple, local device configuration and centralized control of VRF HVAC systems
• Configurable I/Os
• Interfaces that include: RS232, RS485, Ethernet, and KNX (CoolMaster/CoolMasterPro KNX models) for a flexible connection with automation platforms.

Specifications

Market Segment: Residential and Medium Size Commercial

Main Use: Home Automation Integration

Max Connected Units*: 32

Local Access to Advanced Data: No

Supported Communication Protocols: Modbus RTU, Modbus IP, BACnet IP, BACnet MSTP, Rest API, HDL, ASCII, and KNX (In CoolMaster KNX).
