AC-MXNET-CBOX-HA
Click the image to magnify
AVPro Edge

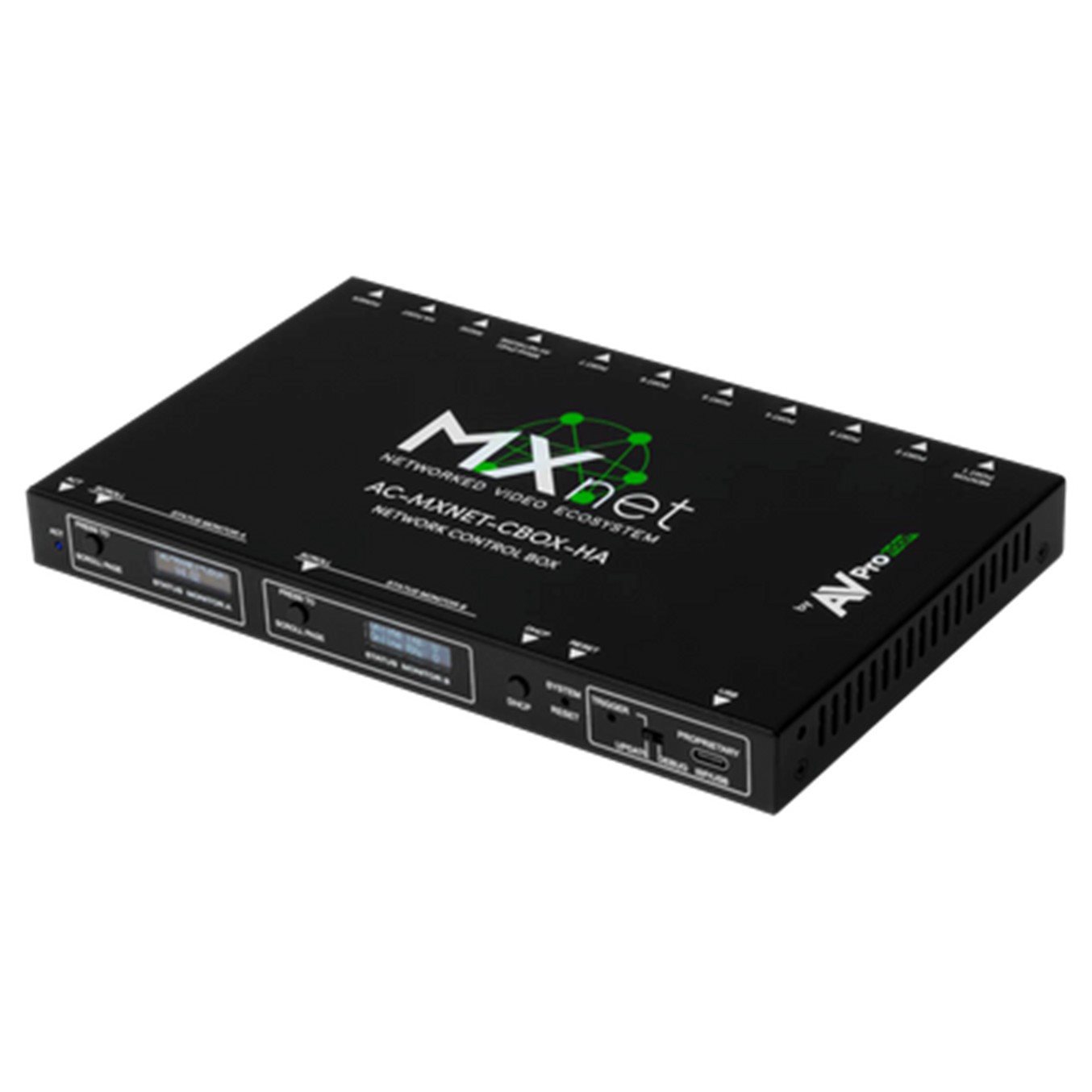

AVPro Edge AC-MXNET-CBOX-HA

MXnet Control Box

Call for availability
Retail: $809.00 EA


MXnet Control Box

The AC-MXNET-CBOX-HA is the centralized management device for every MXnet AV over IP system. The CBOX-HA interfaces between MXnet encoders/decoders and 3rd-party control systems. It also hosts the powerful Mentor web interface for auto-discovery, configuration, routing and maintenance of endpoints. The CBOX-HA provides a single point of management making it incredibly simple to deploy hundreds of endpoints in a matter of minutes.



Features

  • Manages all MXnet 1G & 10G Endpoints
  • Web-hosted ‘Mentor’ Management Interface
  • Isolated AV and Control LAN Connections
  • High Availability Architecture for an ‘Always Up’ Experience
  • Dante Controller Mode
  • Control Drivers Available for Crestron, Q-SYS, Control4 and more!



Specifications

Ports:
Ethernet (8)  × female RJ-45, one with PoE
SFP 0
HDMI N/A
Audio N/A
IR N/A
RS232 (1) × 5 Pin Terminal Block for MXnet System Control

(1) x female RJ-45 RS-232 port (HA)
USB (1) × USB Type C for MXnet service
Distance:
Ethernet 100 Meters/ 330 Feet over CAT5e and above
SFP and Fiber N/A
Environmental:
Operating Temperature 23 to 125°F (-5 to 51°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity 5-90% RH (No Condensation)
Power:
Max Power Consumption 4.5W
PoE (Power over Ethernet) IEEE 802.3af (15.4W)
Power Supply Unit

Input: AC 120-240V-50/60Hz 0.8A

Output: DC 12V 2A

Dimensions:
Mounting Supported rack mounts:
  • AC-MXNET-1G-R15
  • AC-MXNET-1G-R2
  • AC-MXNET-10G-HDRACK (requires AC-MXNET-10G-HA-BRKT)
Dimensions (Unit Only Width/Depth/Height)  mm: 200 X 104 x 20
inch: 7.87 X 4.09 X 0.79
Dimensions (Packaged Width/Depth/Height)  mm: 310 X 180 x 54
inch: 12.2 X 7.09 X 2.13
Weight (Unit) 1.31 LBS/0.596 KG
Weight (Packaged) 1.75 LBS/0.79 KG
Regulatory CE/FCC/UL
Product Warranty 10 Years
Specifications subject to change without notice.  Mass & dimensions are approximate
