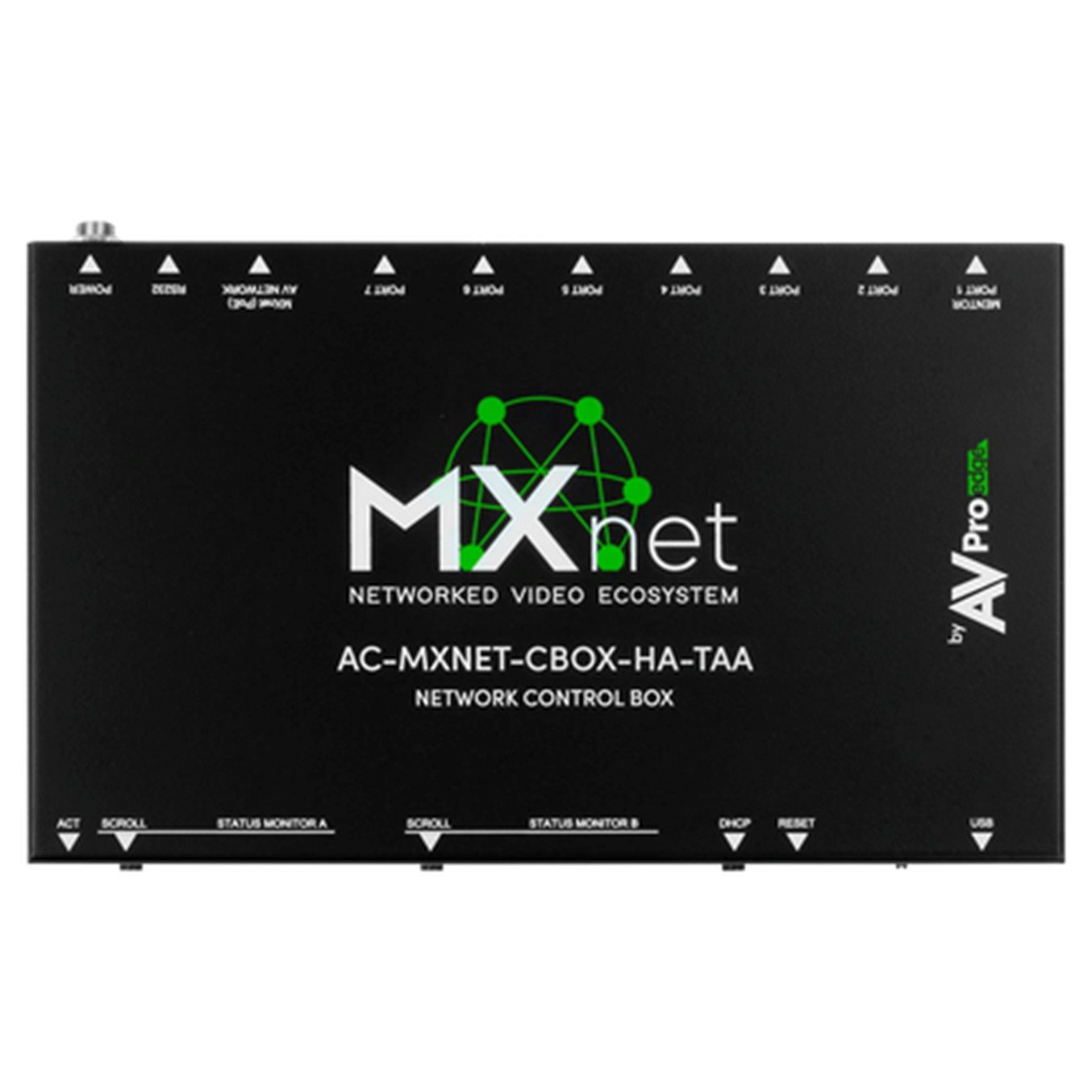

TAA - MXnet 1G Control Box
The AC-MXNET-CBOX-HA-TAA is the TAA-compliant version of the AC-MXNET-CBOX-HA cbox. It maintains all the features and capabilities of the original AC-MXNET-CBOX-HA.
The CBOX is the key to MXnet Ecosystem universe as the multicast routing, A/V data management, and control member of the team. The CBOX houses the system API used by MXnet Mentor and 3rd party control systems. The CBOX is POE powered and silently goes about its business of managing all things multicast and other data formats. The CBOX controls the whole Ecosystem, including audio/video switching/distributing, RS-232/USB/IR signal routing, mosaic video wall building, KVM and system management, etc.
The AC-MXNET-CBOX-HA-TAA is capable of handling hundreds of multicast-enabled endpoints. Thanks to a robust and efficient database, complex system deployments have never been easier. Simply plug in the CBOX to an MXnet SW model (or other 3rd party multicast-capable switch), and let the fun begin. Next, plug in the Encoders and Decoders - and after a few minutes, all the components are ready for full configuration.
The AC-MXNET-CBOX-HA-TAA Control Box is only one part of the MXnet Ecosystem that includes Encoders, Network Switches, Control Processors, and other various components designed to facilitate the building of a custom A/V distribution system. MXnet’s Ecosystem includes formatting such as resolution scaling, full EDID management, multifaceted video walls, and includes the MXnet MENTOR setup and control tool - making installations easy on the integrator, while also presenting a major WOW factor for your client.
Features
- TAA Compliant – Made in the USA
- Web based – Apache Web Server
- POE powered ( uses 1.3 Watts )
- Works with any multicast capable managed 3rd party switch
- Powerful module tracking database
- Capable of handling hundreds of end points
Specifications
| Ports: |
| Ethernet |
(8) × female RJ-45, one with PoE |
| SFP |
0 |
| HDMI |
N/A |
| Audio |
N/A |
| IR |
N/A |
| RS232 |
(1) × 5 Pin Terminal Block for MXnet System Control |
| USB |
(1) × USB Micro Type-B for MXnet service |
| Distance: |
| Ethernet |
100 Meters/ 330 Feet over CAT5e and above |
| SFP and Fiber |
N/A |
| Environmental: |
| Operating Temperature |
23 to 125°F (-5 to 51°C) |
| Storage Temperature |
-4 to 140°F (-20 to 60°C) |
| Operating Humidity |
5-90% RH (No Condensation) |
| Power: |
| Max Power Consumption |
4.5W |
| PoE (Power over Ethernet) |
IEEE 802.3af (15.4W) |
| Power Supply Unit |
Input: AC 120-240V-50/60Hz 0.8A
Output: DC 12V 2A |
| Dimensions: |
| Mounting |
Rack and Furniture mount support |
Dimensions
(Unit Only Width/Depth/Height) |
mm: 200 X 104 x 20
inch: 7.87 X 4.09 X 0.79 |
Dimensions
(Packaged Width/Depth/Height) |
mm: 310 X 180 x 54
inch: 12.2 X 7.09 X 2.13 |
| Weight (Unit) |
1.26 LBS/0.57 KG |
| Weight (Packaged) |
1.74 LBS/0.79 KG |
| Regulatory |
CE/FCC/UL |
| Product Warranty |
10 Years |
Specifications subject to change without notice. Mass & dimensions are approximate
*4K60 4:4:4/4k60 4:2:2 Uses ICT Compression |
