BT-10KUHD-040
Click the image to magnify
Bullet Train

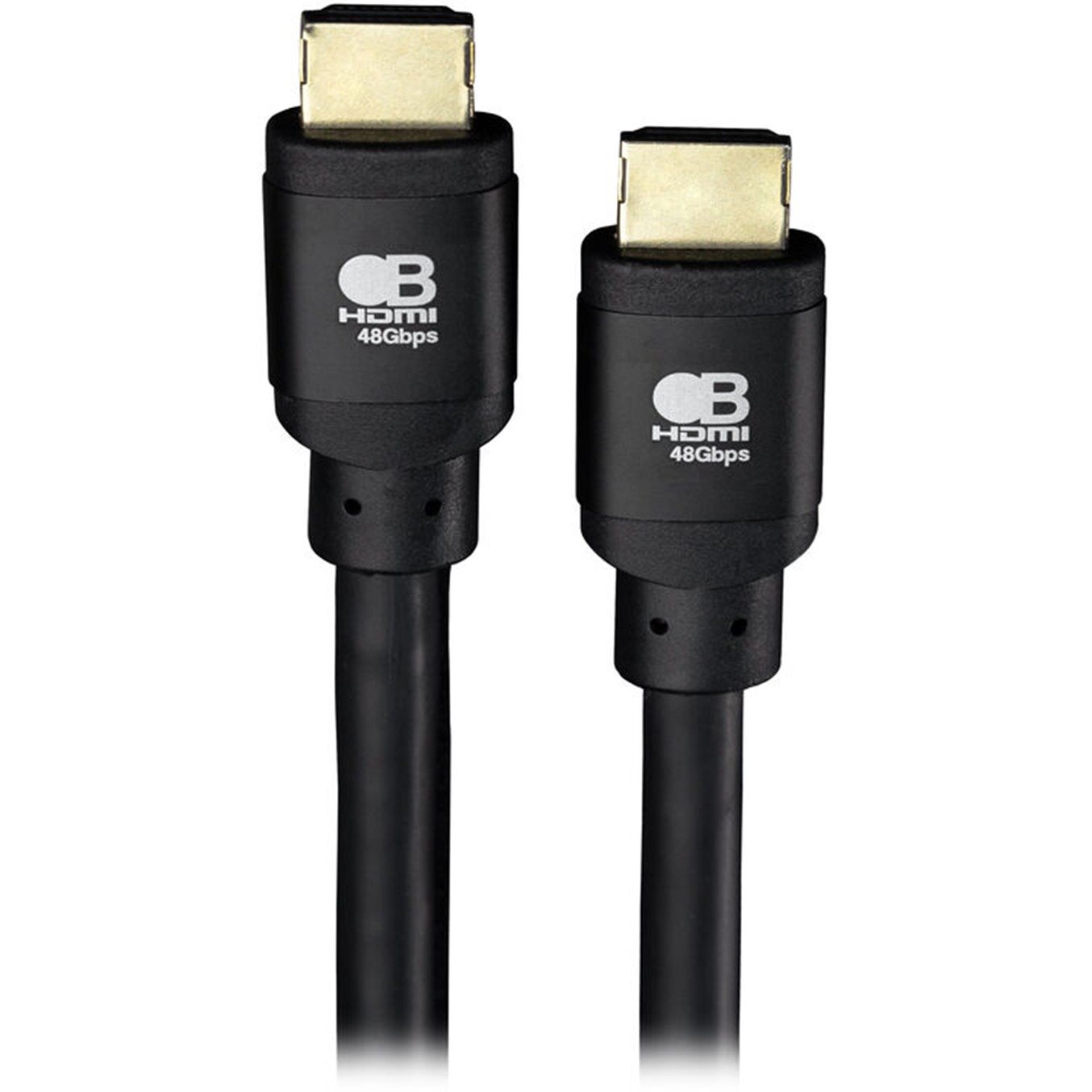

Bullet Train BT-10KUHD-040

4M 10K 48Gbps HDMI Cable
Call for availability
Retail: $123.00 EA


10K 48Gbps High Speed HDMI™ Cables, 4 Meter

All HDMI™ cables are not created equal. Bullet Train has developed HDMI cables built for mission-critical environments where stability is key.

By supporting 48Gbps data rates, this cable ensures impeccable picture quality with zero latency, no matter the signal. These 19K 28Gbps HDMI cables are ISF (Imaging Science Foundation) Certified, the name to trust in picture quality and calibration. Tried and tested, Bullet Train cables are highly engineered to be a long-lasting part of any audio/video system, and they are CL2/CL3 in the wall certified.



Features

  • 48Gbps, 120 fps/Hz
  • FRL & VRR
  • 4K, 5K, 8K and 10K
  • In-Wall Rated
  • Serial-numbered headshells for rapid signal path verification



Specifications

Connector Type HDMI Type-A, male
Available Lengths BT-10KUHD-040 - 4 m (13.1 ft.)
Max Resolution Timing 8K @ 60 Hz, 4:4:4,  12-bit
Max Bandwidth 48 Gbps
Retention Force 3 kg / 6.6 lbs
Wire Gauge BT-10KUHD-040 - 26 AWG
Internal Wire Construction 8C (4 x High-speed differential FRL pairs)
2C (1 x HEAC/eARC differential pair)
3C (3 x 'DDC-SDA', 'DDC-SCL' & 'CEC')
1C (1 x '+5 V')
Cable Impedance 100 Ohms s±10 Ohms
Cable Outer Diameter BT-10KUHD-040 - 9.0 ± 0.2 mm
Plug Dimensions (L x W x D) mm: 38.1 x 20.32 x 11.18
inches: 1.5 x .8 x .44
Plug Material Gold-plated
Casing Material Black Molded PVC
Outer Shielding Material PVC Jacket
Bend Radius BT-10KUHD-040 - 135 mm
In-Wall Rating CL3
EMI/EMC/Safety Certifications UL
Environmental RoHS / CA65
ESD Rating 8 kV contact (IEC 61000-4-2 Level 2)
Lead-free (Pb-free) Yes
