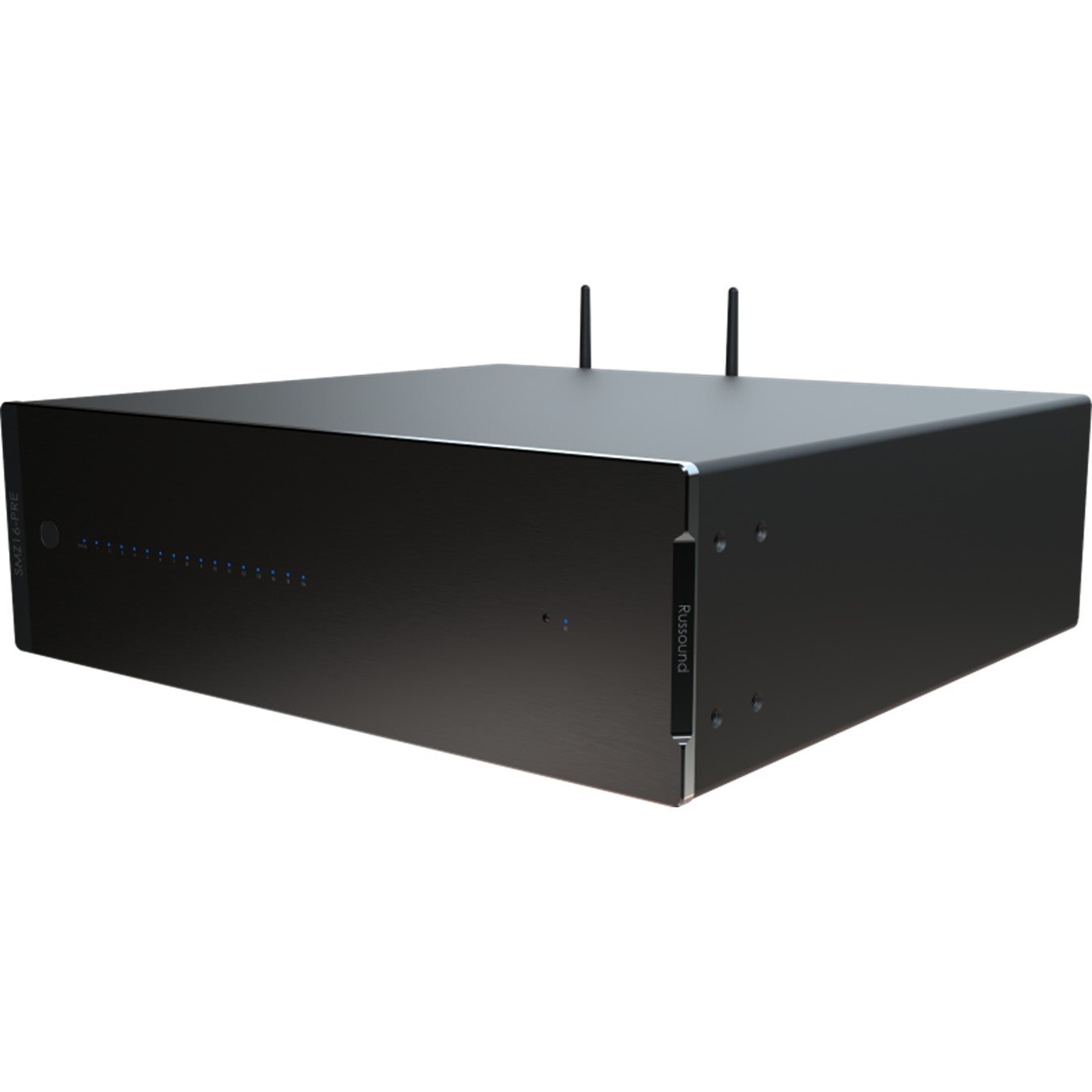

SMZ16-PRE 16x16 Matrix Pre-Amplifier with Built-in Streamer

The SMZ16-PRE 16x16 Matrix Pre-Amplifier with Built-in Streamer is a state of-the-art streaming controller that represents the culmination of extensive research and development efforts and is setting new standards in premium multi-room audio solutions. The pre-amplifier features an updated app with multiple enhancements, including graphic equalization, speaker presets, and a host of other features designed to offer unparalleled control and customization, and ensuring quality, support, and security for end-users and installers alike.

Following in the footsteps of our SMZ8 8-Source/8-Zone Controller Amplifier with Built-in Streamer, the SMZ16-PRE features 16 stereo inputs, which can be used in any combination of up to 16 analog, six digital optical, or four digital coax inputs. Though 16x16, the SMZ16-PRE is expandable up to an incredibly powerful 16x96 stereo-channel audio matrix. As with the SMZ8, the SMZ16-PRE boasts an HDMI input (ARC) for connecting to a TV or video source that can be distributed to all zones with low latency to avoid any lip synch issues. The SMZ16-PRE also offers Stereo/Mono Output Options and is controllable with the IPK-1, XTS7 and Russound App.

Features

• Built-in Hi-Res Audio Streamer with all of the popular sources and support for both AirPlay and Google Cast
• Integrated DSP – 7 Band Graphic EQ with built-in presets for Russound Speakers
• HDMI Input (ARC) for connecting to a TV or video source with low latency synchronization to avoid lip synch issues
• 16 Stereo Inputs – Use any combination of up to 16 stereo analog, 6 digital optical, or 4 digital coax inputs
• Controllable with XTS7, IPK-1 and Russound App
• Expandable up to 16x96 matrix
• Rackmountable with Rack Mount Ears Included
• Two-Year Limited Warranty

Specifications

Network Connectivity: Wired/Wi-Fi 802.11ac

Audio Input Connectors: Up to 8 Analog, 6 Dig. Optical, 4 Dig. Coax, 1 HDMI, 1 USB

Supports Low Latency Synchronization: Yes

Advanced DSP with 7-band EQ: Yes

Supports Optional BTC-2X: Yes

Russound Certified Installer Required: Yes

Rack Mount Ears Included: Yes

Power Requirements: 100-120V / 220-240V ~ 50/60 Hz

Product Dimensions: 19 in x 17 in x 5.25 in (48.3 cm x 43.2 cm x 13.3 cm)

Product Weight: 20.7 lbs (9.4 kg)

Shipping Dimensions: 20.9 in x 19.7 in x 15 in (53 cm x 50 cm x 38.1 cm)

Shipping Weight: 27.56 lbs (12.5 kg)
