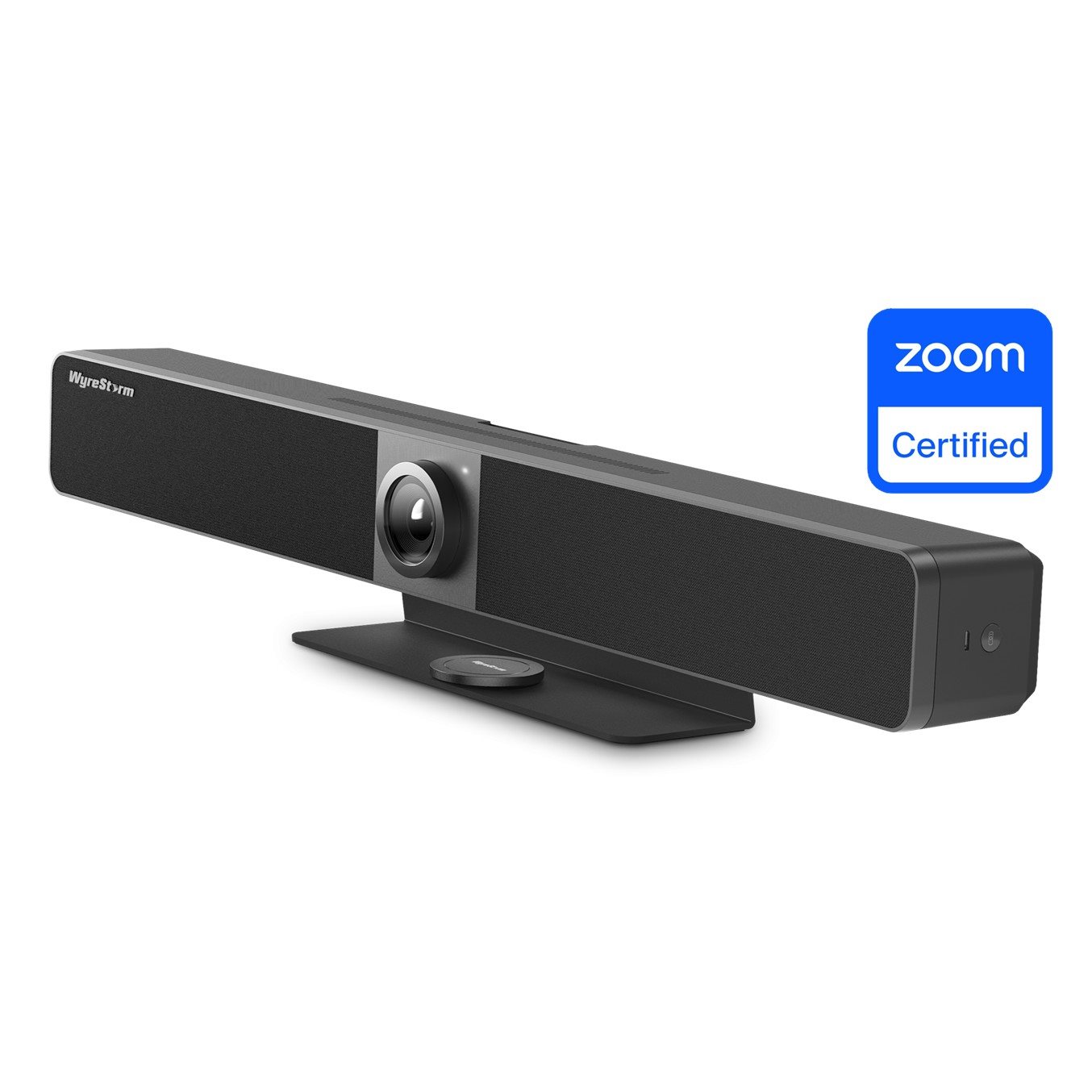

Wyrestorm APO-VX20-UC v2 Next-Gen Apollo 4K AI All-in-One Video Bar & Switcher with Wireless Casting, Wireless Conferencing and Dual 4K Outputs

The APO-VX20-UC v2 represents the next generation of all-in-one video bars and switchers, engineered to deliver a premium unified communication experience. It combines a high-performance array microphone, powerful stereo speakers, and an ultra-wide angle 4K camera into a single elegant device. With USB-C connectivity supporting 60W charging, HDMI input, dual HDMI outputs and seamless wireless casting through AirPlay, Miracast, and APO-DG2/APO-GD2-PRO with wireless casting and conferencing, the APO-VX20-UC v2 brings unparalleled versatility and simplicity to any professional meeting space.

Features

• Supports up to 4K@30 video resolution on a HDMI input, 4K@60 video resolution on a HDMI output 1 and, 4K@30 on HDMI output 2, ensuring superior visual quality for your presentations
• Features automatic switching modes such as last-in-first-out, ensuring the most relevant input source is always displayed
• Supports USB-C video transmission and 60W source charging
• Includes enhanced Acoustic Echo Cancelation, background noise reduction, automatic gain control, and full duplex mode communication to make all participants feel like they are in the same room
• Built in 8x MEMS digital mic arrays with a range of 8 Meters, an angle of 180 degrees and microphone range extension with up to 5 APO-SKY-MIC’s
• Supports firmware updates via the Web UI and offers multiple methods to restore factory settings, ensuring the device stays up-to-date and easy to troubleshoot
• Support more secured HTTPS protocol
• Two LED lights to show the working status, one for camera and one for system
• Plug & Play, and full compatibility for OS (Windows 10 or above Mac OS 10.15 or above) and UC applications, like Zoom, Teams, etc.

Specifications

AUDIO & VIDEO

Video Resolutions (Max)

• USB-C IN: Supports DP video transmission, maximum resolution: 4K@30Hz
• HDMI IN: 4K@30Hz (Max), HDCP 1.4
• HDMI OUT 1: 4K@60Hz (Max), HDCP 2.3
• HDMI OUT 2: 4K@30Hz (Max), HDCP 2.2

Output Video Encoding MJPEG/NV12/H.264/H.265 | UVC 1.1

CAMERA AND SENSOR

Lens Fixed Focus,1/1.8’, DFOV 120°

Camera Sensor CMOS, Effective Pixel: 8.0M，1/1.8’

White Balance Auto

Backlight Compensation Auto

Digital Noise Reduction 2D, 3D Digital noise reduction supported

Viewing Angle DFOV: 120°

ePTZ Supported | 5 x Digital Zoom

HDR Supported

Tracking Mode Auto Framing / Speaker Tracking / Presenter Tracking / Individuals Gallery / Manual Mode

SPEAKERPHONE

Microphone 8 x Linear microphone arrays with AEC, ANS, and AGC | Pick-up Range: 8m/26.2ft

Speaker 2x 8 watt

COMMUNICATION AND CONTROL

USB

• USB-C: USB 3.0 host (60W max charging)
• USB-A: USB 3.0 device (1.25A current output)
• USB-B: USB 3.0 host

USB Protocols UAC, UVC, USB HID

Ethernet 1x RJ45

WLAN IEEE 802.11 a/b/g/n/ac

Control Method Button, Bluetooth Remote Controller, API, Web UI

In the Box

• 1x APO-VX20-UC v2
• 1x DC power adapter 20V/6A with US/UK/EU/AU
• 1x 5m HDMI cable
• 1x 5m USB-A to USB-B cable
• 1x Remote controller
• 1x Magnetic lens cap
• 1x Wall Mounting Kit
• 1x Desktop stand (On the device)
• 1x QuickStart Guide
• 1x APO-MIC-EXT (RJ45 to USB MINI adapter)
