Replacement for conventional fluorescent T8 and T12 linear tubes. Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast. Approximately 50% more energy efficient when compared to Fluorescent T8 lamps. Works with non-shunted sockets ONLY. Separate wiring harness and socket kit accessory available 50,000 hour Lifespan. Rated for use in enclosed and open fixtures in dry or damp locations. Diffused frosted lens will maintain the same light quality over time. Instant on full brightness. Environmentally friendly, no mercury used. NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations).

Performance:

• Product Type: Linear
• Input Wattage: 15W
• Typical Lumen Output: 1800
• Efficacy: 120 lm/W
• Color Temperature: 4000K Cool White
• CRI: 82
• L70 Lifespan: 50,000 Hours
• Dimmable: No

Technical Specifications:

• Material: Glass

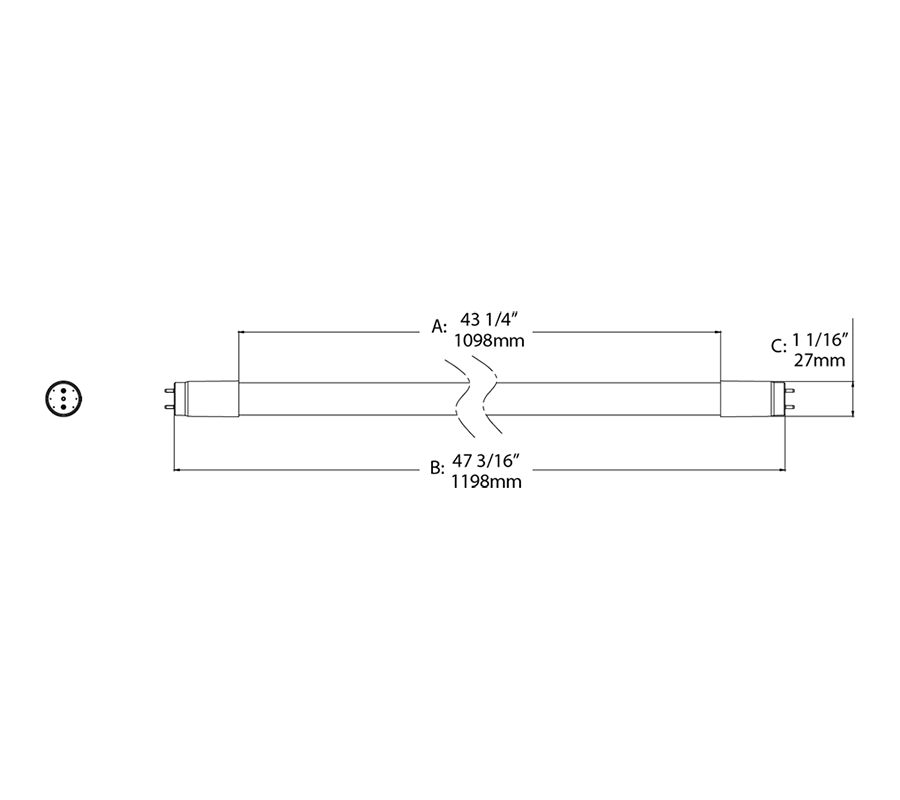

• Nominal Length: 4 FT
• Finish: Frosted
• For Use Outdoors in Open Fixtures: No

Construction:

• Bulb Shape: T8
• Base Type: G13
• Beam Angle: 240°

Other:

• Equivalency: 32W Fluorescent
• Warranty (Years): RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Electrical:

• Operating Temperature: -20°C - 45°C
• Input Voltage: 100-277V
• Operating Frequency: 50/60Hz

Installation:

• Installation Type: Type B, Single Ended wiring

Compliance:

• UL Recognized: Yes
• UL Classified: Yes
• NSF Listed: Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
• DLC Model Number: T8-15-48G-840-SE-BYP
• CEC Status: Lawful for sale in California
• Application: Suitable for damp locations and totally enclosed fixtures.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
• DLC Product Code: P39CYDL3
