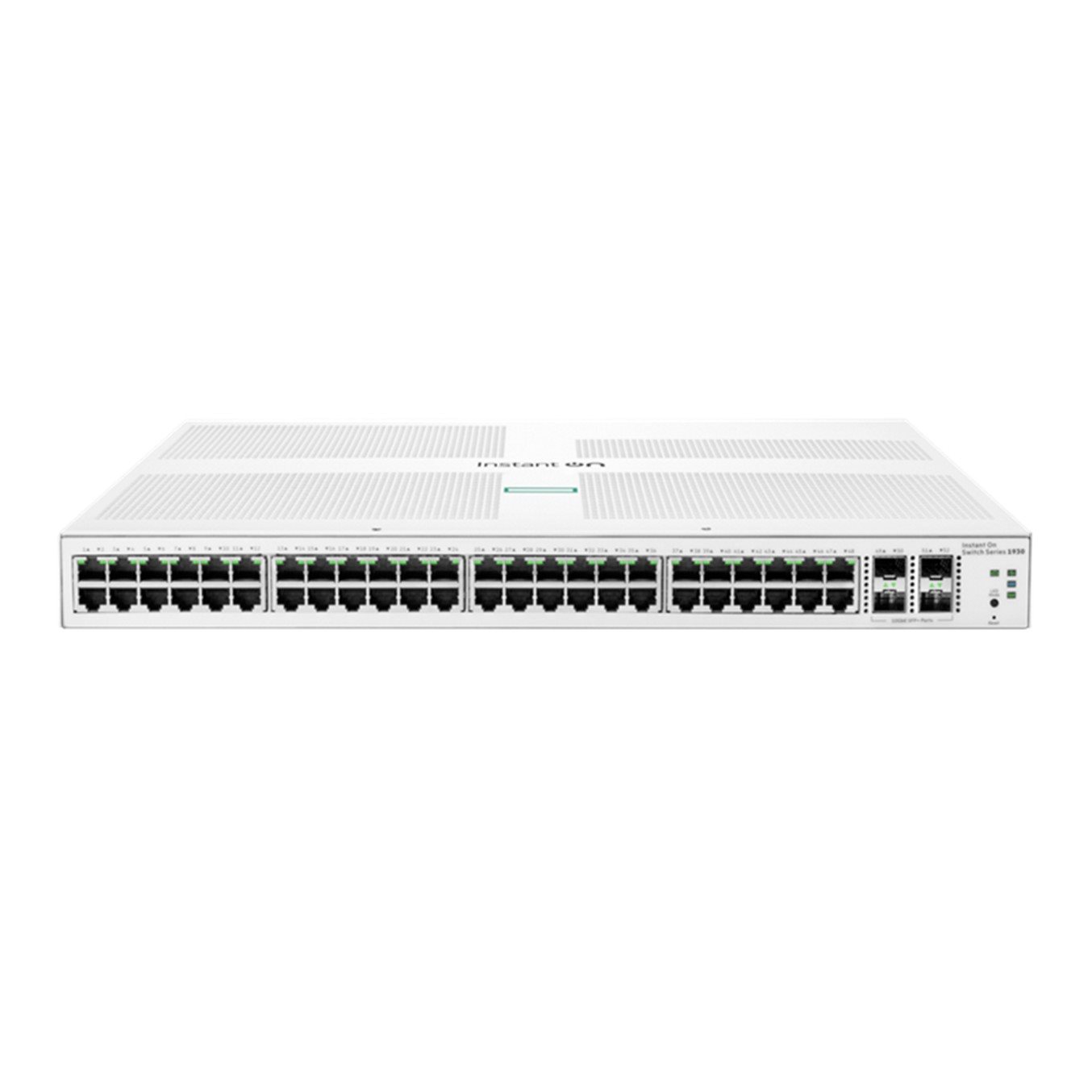

HPE Networking Instant On Switch 48p Gigabit 4p SFP+ 1930

The HPE Networking Instant On Switch Series 1930 empowers you to do more. Affordable and easy-to-deploy, these smart-managed, fixed-configuration Gigabit switches are designed for the today bandwidth-heavy applications.

Features

• Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
• Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
• 1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
• HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• Option to manage your switches through local web GUI.

Specifications

DifferentiatorPorts: 48 Gigabit copper
Uplink ports: 4 SFP+ 1/10 GbE ports

Power consumption36.9W maximum, 16.8W idle

Input voltage100 - 127 / 200 - 240 VAC

Ports48 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10 BASE-T, IEEE 802.3u
Type 100 BASE-TX, IEEE 802.3ab Type
1000 BASE-T);

Duplex: 10 BASE-T/100 BASE-TX: half or
full; 1000 BASE-T: full only
4 SFP+ 1/10 GbE ports

Switching capacity176 Gbps

Throughput130.95 Mpps, maximum

Memory and processorARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash
1.5 MB packet buffer

Operating temperature32°F to 104°F (0°C to 40°C)

Management featuresInstant On Portal, Web browser, SNMP Manager

WarrantyLimited lifetime warranty with 24X7 phone support for the first 90 days and chat support for the entire warranty duration.
Community support is available for the life of the product.

Weight3.13 kg (6.91 lb)

Dimensions4.39 x 44.25 x 28.24 cm (1.73 x 17.42 x 11.12 in)
