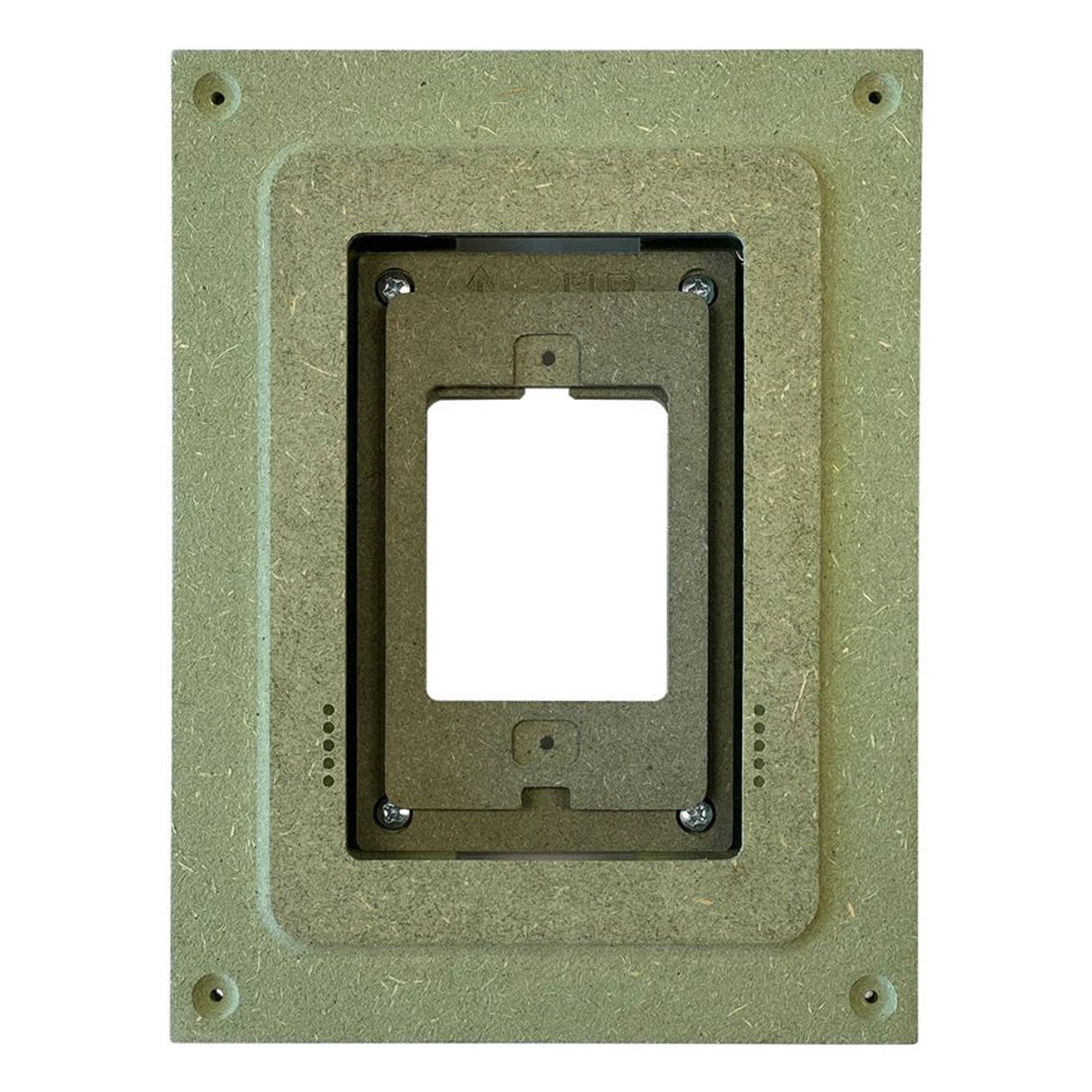

RTI IST-5-FMK, IST-5 Flush Mount Kit

The IST-5 Intelligent Surface Touchpanel delivers the thinnest bezel and lowest profile to the wall of any touchpanel in its class. And now it adds an entirely flush-to-the-wall aesthetic, ideal for luxury and high-end installations with the IST-10-FMK adaptor.

For installation in new construction, the IST-10-FMK adapter mounts flush-to-the-wall and securely cradles the IST-10 Touchpanel while allowing easy access, insertion and operation.

Designed to use with ½” drywall installation, the IST-10-FMK is paintable in any color or texture delivering a truly seamless fit with the wall. It features a set of sound holes aligned with the Touchpanel’s speaker for maximum audio performance.

FEATURES

• Flush with the wall.
• Paintable in any color and texture.
• Includes depth calibration mechanism.
• Allows easy insertion and removal of the touch screen.
• The adapter is supplied unpainted (To be painted after installation as part of the wall).
• Designed to be installed in ½” drywall.

SPECIFICATIONS

• Dimensions (W/H/D): 160mm (6.3”) / 210.8mm (8.3”) / 44mm (1.73”).
• Shipping Dims (W/H/D): 275mm (10.8') / 195mm (7.6") / 55mm (2.16")
• Weight: 0.6Kg, 1.32lbs.
• Material: Moisture resistant MDF (compliant with TSCA Title VI).
• To be installed in ½” drywall.
• Included in the box: IST-5-FMK Flush Mount Kit, M3x12 Flat screws (2), M3 nuts (2),  Touchpanel adapter
