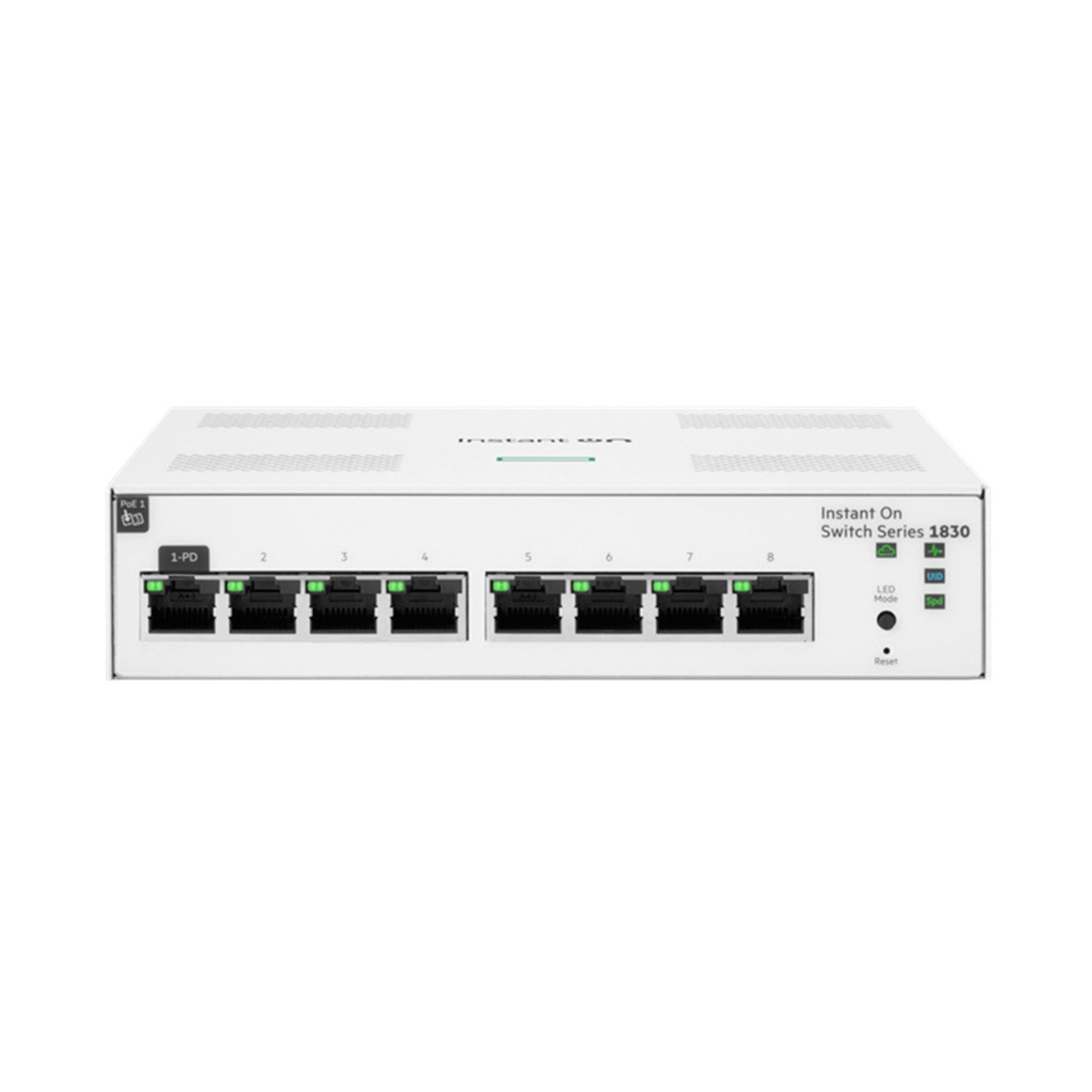

HPE Networking Instant On Switch 8p Gigabit 1830

HPE Networking Instant On Switch 1830 series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications. This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.

Features

• Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.
• Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.
• HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.

• Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
• Option to manage your switches through local web GUI.
• Cost-effective PoE support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.

Specifications

DifferentiatorEntry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 8 10/100/1000 RJ-45 ports. Can be powered up by an upstream Power over Ethernet (PoE) switch.

Power consumptionMaximum: 100-127V: 8.09W 200-220V: 8.05W; Idle: 100-127V: 5.8W 200-220V: 5.9W

Input voltage100 - 240 VAC

Ports8 RJ-45 10/100/1000 ports

Switching capacity16 Gbps

Throughput11.90 Mpps

Memory and processorARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

PoE capability-

Operating temperature0-40°C, 0-10,000 ft

Management featuresHPE Networking Instant On Cloud; Web browser; SNMP Manager

WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Weight0.77 kg (1.70 lb)

Dimensions15.70 x 17.30 x 3.91 cm (6.18 x 6.81 x 1.54 in)
