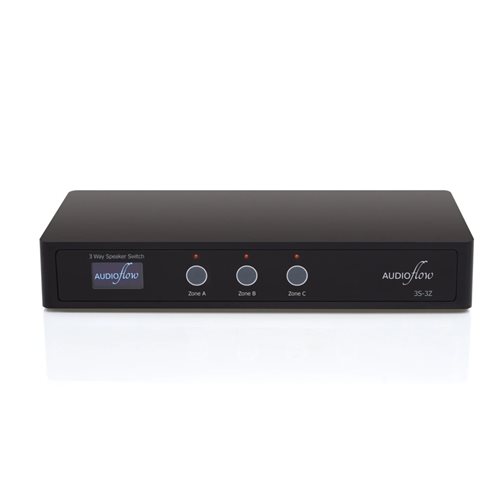

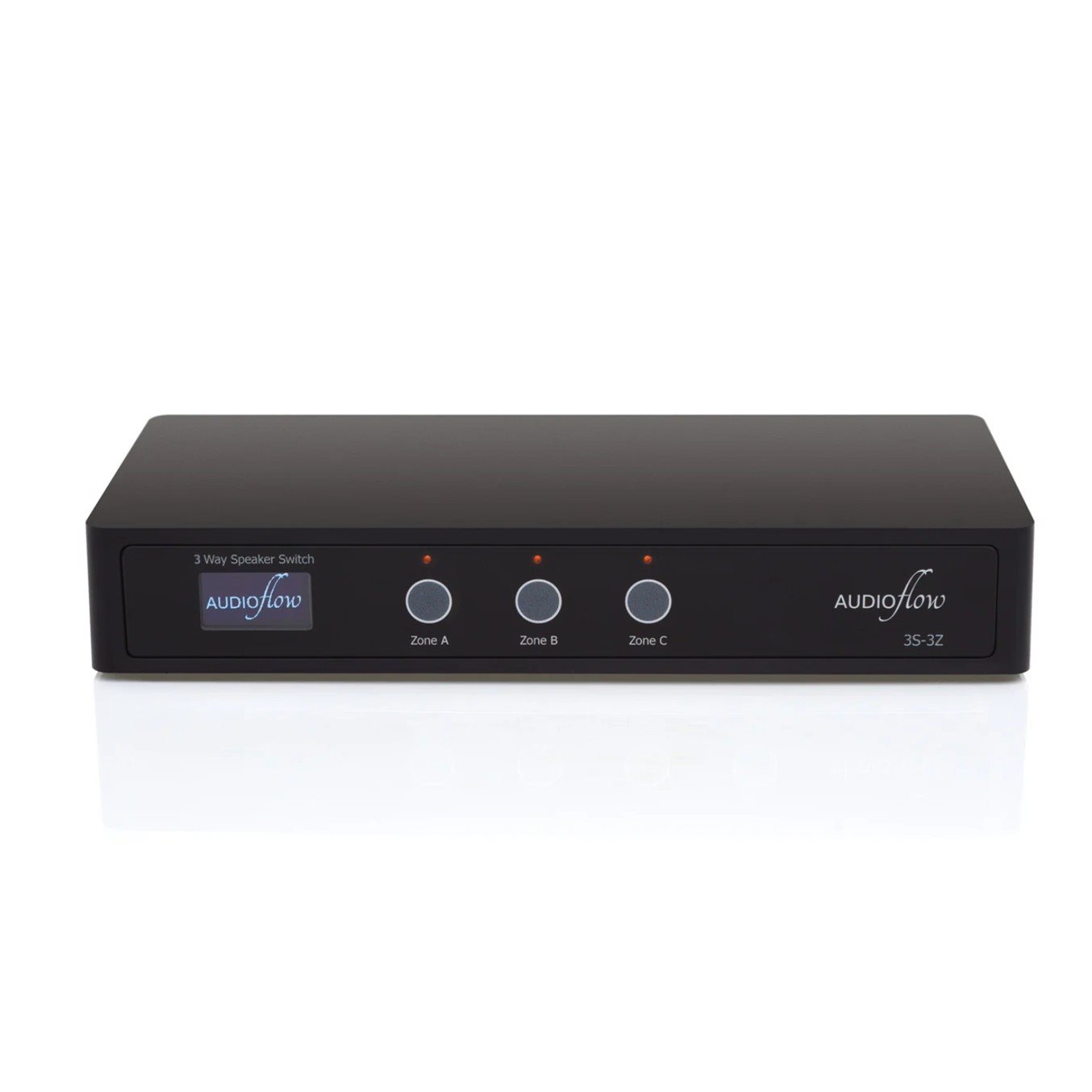

3S-3Z Audioflow 3 Way Speaker Switch

Connect three pairs of speakers to your stereo amplifier. Control the switch with the manual touch buttons on the front of the unit, contact closure connections on the rear or via Wi-Fi with the Audioflow app for iOS / Android or the Amazon Alexa Voice Assistant. Made in the UK.

FEATURES

• Next-gen speaker switches are the perfect complement for local zone, multi-room, & outdoor audio applications where you need to control individual pairs of speakers.
• Wifi control with the Audioflow app
• Better sound and app set-up.
• Seamless integration across popular control brands (Control4, Crestron, ELAN, RTI, & URC)
• The world's very first IP-enabled speaker switch.

SPECIFICATIONS

Description: 3 Way Smart Speaker Switch

Model Number: 3S-3Z UPC / EAN-13 5060739700010

Product Dimensions, Weight: H38 x W216 x D100 mm, 293g

Boxed Dimensions, Weight: H90 x W355 x D127 mm, 704g

Includes: Power Supply, Connection Plugs, Cable Ties, Quick Start Guide

Outer Box: 12pcs, H275 x W565 x D375 mm, 9.5kg

Power Input: 5V DC 1A, 2.1 x 5.5mm Barrel Plug, Centre Positive

Power Supply: 100-240V 50/60Hz, 1.8m Lead, UK/EU/USA/AUS Plugs

Switching Relays: Max 8A @ 250V AC

Amplifier Power: Max 300W @ 8Ω

Cable Connection: Max 2.5mm2 or 14AWG

Speaker System Design: Impedance Matching, Zone A in Parallel with (Zone B+C Series)

All Zones Off: Amplifier Protection 200Ω Dummy Load

Wi-Fi Support: 2.4GHz 802.11b/g/n, WPA/WPA2 PSK

Supported OS (Provisioning): Android 6.0+ (Google Play Store) / Apple iOS 13.0+ (App Store)

What is a Speaker Switch?

You would connect from an audio amplifier into a speaker switch and then from the switch to multiple pairs of speakers in your home. This simple device allows you to simply turn the speakers on and off in different areas. Although these were popular in the 90s, the way we listen to music has changed. In a world where we now control our music from our phones, using a physical switch is inconvenient.

What is Audioflow?

Sometimes all you need is simple control, allowing you to listen to your music system in the room that you are in, or enjoy music in an occasional space without the expense of multiple amplifiers.Audioflow makes speaker switches convenient by connecting to your home Wi-Fi. You can then use the App for iOS or Android, voice services such as Amazon Alexa and other control systems to be able to switch your speakers from the same device you are using to play music. Turn your bathroom speakers on when you are in the bath or turn on the garden speakers when you are in the garden.

Important Notes

• You must not use the Audioflow Speaker Switch for 80V / 100V high voltage audio systems as used in commercial installations.
• You must not use the Audioflow Speaker Switch for unintended purposes such as connecting one pair of speakers to multiple amplifiers, lighting control or any other electrical purpose.
• You must not chain the output from one Audioflow Switch to the input of another Audioflow Switch.
• You must use either two 8Ω speakers or one single stereo speaker per zone output of the 3 Way or 4 Way Audioflow.  You may be able to use two pairs or lower impedance speakers on each zone output of the 2 Way Audioflow.
• You should always pay attention to the minimum impedance rating of your amplifier and be sure that you are above that in your system.
