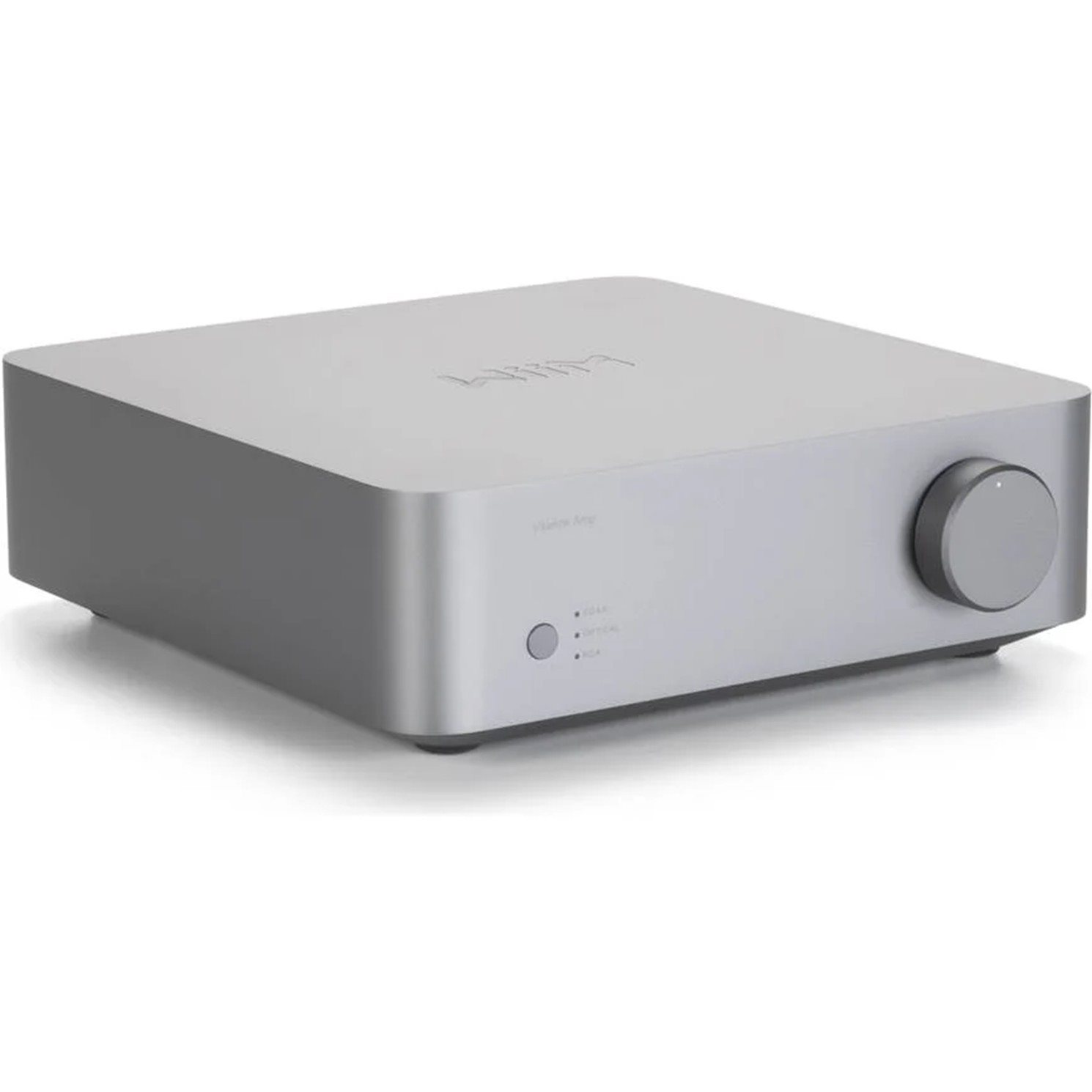

WiiM Vibelink Amp

Features

• Unleash Premium Sound
• Sleek & Durable Aluminum Design
• Seamless Integration with WiiM Streamers
• Pure Analog Input (no ADC conversion)
• True High-Resolution Playback
• Smart, Energy-Efficient Operation
• Anti-Pop Noise Design

Specifications

Dimensions and Weight

Dimensions： 7.9 x 8.4 x 2.6 inches (200 x 212.5 x 66 mm)

Weight： 2.05 kg (4.5 lbs)

Power input: 100-240V, 50/60Hz AC, 3A Max

Power & Amplification

• Output Power : 100W per channel at 8Ω (stereo)

• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology

• Total Harmonic Distortion (THD+N) : ≤0.0005%

• Signal-to-Noise Ratio (SNR) : ≥120dB

• Frequency Response: 20Hz – 20kHz ± 0.5dB

• Impedance Range: 3~8 ohms

Audio Processing

• Premium DAC : ESS 9039Q2M high-performance DAC

• Bit-Perfect Playback : Supports up to 192kHz/24-bit audio

• Dynamic Range : ≥120dB for high-resolution sound

• Pure Analog Input : No ADC conversion, maintaining signal integrity

Input & Output Options

Analog Inputs:

• 1x RCA Stereo (Line-In, pure analog signal path)

✅ Digital Inputs:

• 1x Optical (TOSLINK) – Up to 192kHz/24-bit

• 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit

✅ Speaker Outputs:

• Gold-plated binding posts (supports banana plugs or bare wire connections)

✅ Trigger & Power Management:

• 12V Trigger In: Auto power-on with compatible devices

• Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity

Supported Audio Formats

PCM up to 192kHz/24-bit (through digital sources)

Control Interfaces

Volume Knob: Adjusts volume

LED Indicator: Three 4-color RGBW LED indicates source input and device status

Build & Design

• Chassis: Premium unibody aluminum for durability & heat dissipation

• Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control

• Cooling System: Passive, silent operation

Package Contents

Use Guide *1
Power Cable *1
RCA Cable *1
Optical Cable *1
Banana Plugs *4
