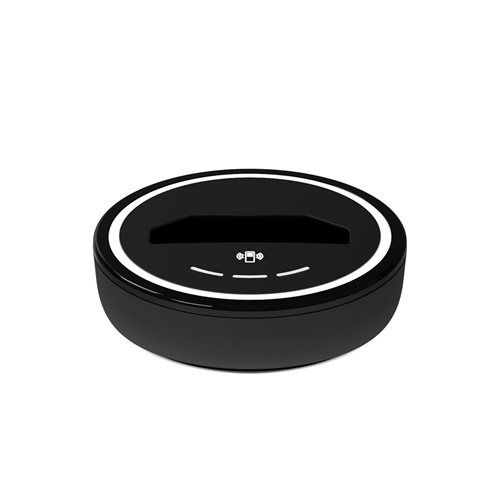

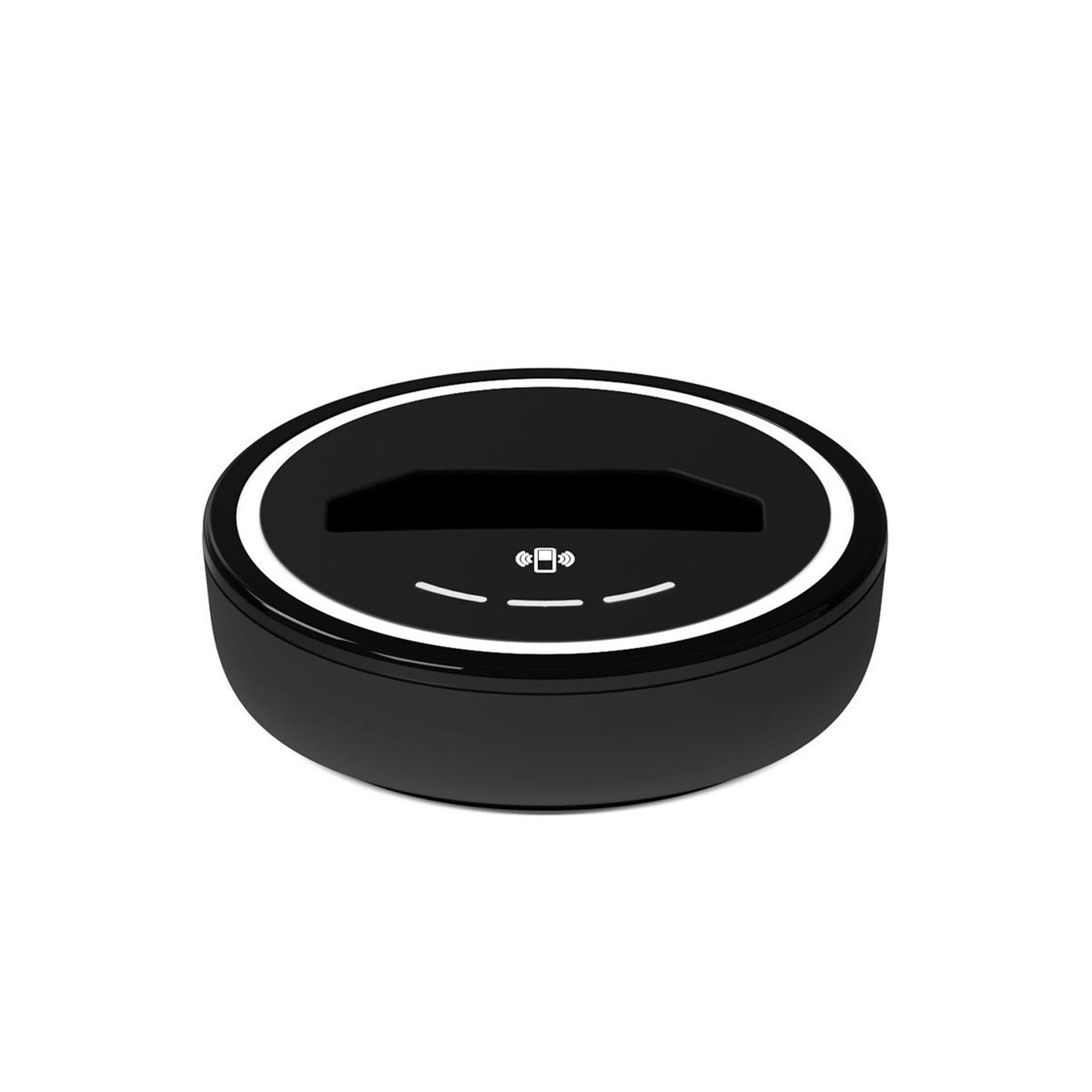

RTI ISR-AB Advanced Base Controller for Intelligent Surface Remotes
Dedicated Wi-Fi- Access Point. Three fully programmable buttons—plus the first-ever "Find My Remote" button.
What if your remote’s base did more than just charge?
Introducing the ISR-AB Advanced Base Controller - the first-ever charging base to offer programmable control buttons and a “Find My Remote” button, adding unmatched convenience and elevating the control experience. The ISR-AB Advanced Base Controller is the perfect companion to your Intelligent Surface remote, providing an instant and dedicated Wi-Fi connection for seamless control.
Equipped with three programmable soft-touch buttons, it’s ideal for easy control of custom scenes or frequently used room functions—without even lifting the remote off the base.
Plus, the ISR-AB’s “Find My Remote” button triggers an audible beep on your remote to help you locate it when misplaced. The ISR-AB Advanced Base Controller is an essential upgrade for any smart home or office.
The ISR-AB programs only with RTI Integration Designer 11 to deliver a 100% customizable experience exclusive to RTI control and automation systems.
FEATURES
- Wi-Fi access point for solid, dedicated, instant-on Wi-Fi connection for the ISR-4 or ISR-2
- Wired or wireless connection to the system
- Three programmable soft-touch buttons for scenes and commands
- "Find My Remote" button
- Modern design with programmable LED light ring
- Easy charging for the ISR-4 or ISR-2
SPECIFICATIONS
| Power Supply |
+5VDC, 2.0A |
| Ethernet |
10/100/1000BaseT, RJ-45 Connector |
| PoE |
802.3af |
| Wi-Fi Frequeny |
2.4GHz |
| Wi-Fi Modes |
802.11ac, n, g, b, and |
| Wi-Fi Range |
Minimum of 100ft (30m) indoors |
| Modes of Operation |
Hard Wired Ethernet and Wi-Fi Bridge Mode |
| Security |
WPA or WPA 2 password protection |
| Buttons |
Four capacitive touch, all programmable through ID11.
One “Find my Remote” and three programmable scenes. |
| Button LEDs |
One programmable indicator of “Find my Remote” icon.
One programmable indicator of all three soft-touch buttons. |
| LED Light Ring |
Illuminates in set colors to correspond to different modes of operation:
BLUE - No remote in the ISR-AB
RED - Remote is in the ISR-AB and charging
GREEN - Remote is in the ISR-AB and fully charged |
| Power for ISR Remote |
Charging for ISR-4 or ISR-2 |
| Battery Charge Time |
3-4 Hours |
| Minimum ID Version |
11.12 or later |
| Warranty |
Three Years (Parts & Labor) |
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
All specifications subject to change without notice.
Included in the box: ISR-AB, international power supply (5V, 2A)
