Product info
- 8 rear-panel switched AC outlets
- 6 standard outlets
- 2 high-current outlets
- 3240-Joule MOV Surge Protection
- 50dB EMI/RFI noise filtering across all outlets for clear sound
- three LED indicators provide visual confirmation that your equipment is protected
- over- and under-voltage protection
- maximum current rating: 15 amps
- rack-mountable with included rack ears
- rubber feet included for tabletop placement
- dimensions (measured by Crutchfield): 16-7/8" W x 1-13/16"H x 8-15/16"D (1U rack spaces)
- warranty: 3 years
Features
Overview: The ethereal Helios HS-908PC is rack-mountable power conditioner and power distribution unit (PDU), designed for use by audio/video professionals, contractors, broadcasters, musicians, and home owners. It has 8 high-quality AC outlets on the rear panel, including two high-current outlets. The unit is rack-mountable, and takes up 1U of rack space. The HS-908PC features a flexible 6' power cord with three 14-gauge conductors and a right-angled NEMA 5-15P 3-prong plug that lies flat against the wall. The PDU is covered by a three-year limited warranty.
8 AC Outlets: The HS-908PC has a total of eight 3-pronged outlets on the rear panel. Two of the outlets are designated for high-current devices. The front panel power button turns all of the outlets on or off at once. The outlets are spaced approximately 1.5" apart to accommodate most bulky AC adapter plugs ("wall warts").
LED Lighting: The front-panel power button is backlit to make it easier to see it in the dark. The dimmer button lets you set the brightness to one of four levels: 0%, 30%, 70% (default), and 100%.

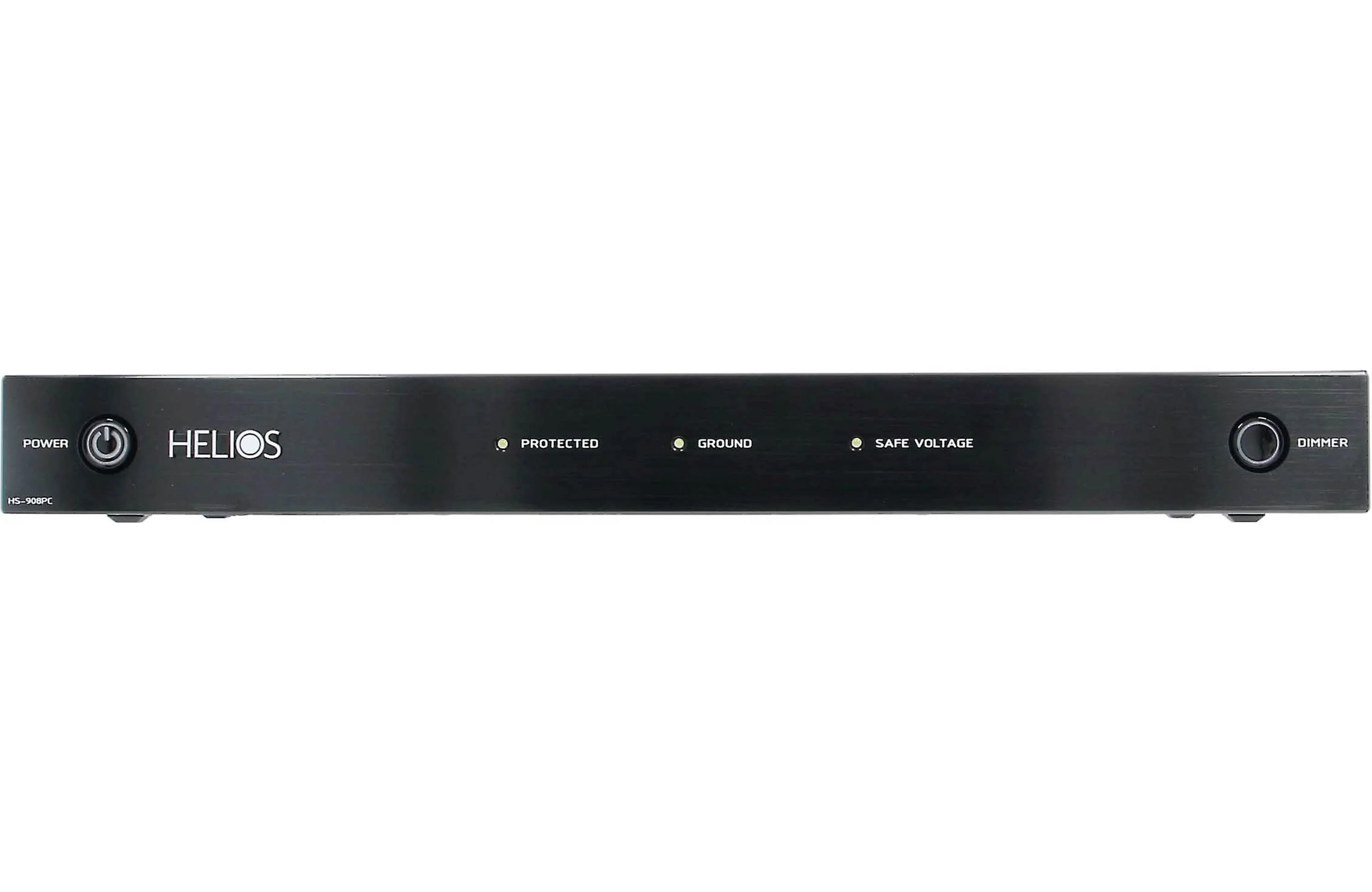

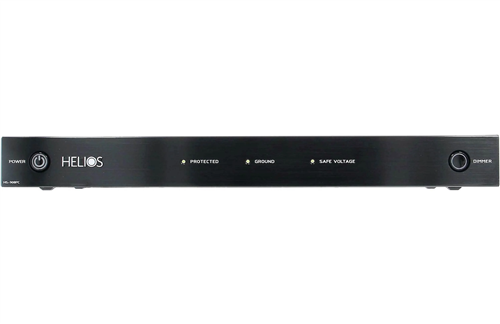

LED Indicators: The HS-908PC has three LED indicators on the front panel so you can monitor the unit's status at a glance:
- Protected:
- On: Surge protection is operational.
- Off: Surge protection is not operational and should not be used.
- Ground:
- On: The unit is properly grounded
- Off: The unit is not grounded correctly and should not be used.
- Safe Voltage:
- On: Voltage from the power company is normal
- Off: Voltage from the power company is outside of normal range (over 138 or under 88 volts).
Surge Suppression: The HS-908PC uses MOVs (Metal Oxide Varistors) to provide excellent surge suppression for your connected equipment. It has a surge protection rating of 3240 joules.
Safe Voltage Protection: Because the voltage from the power company can vary, the Helios HS-908PC offers protection from over- and under-voltage fluctuations:
- Over-Voltage: When the input voltage is above 138VAC (±5VAC), the Safe Voltage LED will flash and the power to the outlets is turned off. When input voltage comes back to below 130 VAC (±5VAC), the power is restored to the outlets and the Safe Voltage LED will flash five times and turn back on.
- Under-Voltage: When the input voltage is below 88VAC (±5VAC), the Safe Voltage LED will flash and the power to the outlets is turned off. When input voltage rises above 100 VAC (±5VAC), the power is restored to the outlets and the Safe Voltage LED will flash five times and turn back on.
Noise Filtering: Noise from the power grid can degrade the performance of your audio and video equipment. The HS-908PC provides AC noise filtering to reduce radio frequency (RFI) and electromagnetic interference (EMI) by up to 50dB. The unit's black brushed aluminum chassis offers a measure of shielding from interference as well.
Circuit Breaker: The HS-908PC has a resettable 15 Amp circuit breaker on the rear panel, next to the power cord. If the breaker encounters an excessive load, it will "trip" to protect the connected components. After resetting the circuit breaker, you should reduce the load before turning the unit on.
Mounting Options: The Helios HS-908PC is designed to fit into a standard 19" equipment rack, filling a single (1U) rack space. The unit comes with two rack ears and the hardware for attaching them to the PDU. The unit has three sets of threaded screw holes along each side for attaching the rack ears in various positions. The HS-908PC can be installed in the following ways:
- Rack Mount: The included rack mount ears can be attached near the front to mount the unit flush with the rack. The ears can be reverse-mounted at the rear of the unit to mount it at the back of the rack (with the outlets facing out).
- Surface Mount: The rack mount ears can be turned 90° and attached facing the top or bottom of the unit. This allows you to mount the PDU to the top or bottom of a surface.
- Shelf Mount: The unit comes with four adhesive-backed rubber feet that can be placed on the bottom panel for placement on a shelf or tabletop. (The rack ears are not used in this case.)
Certification: The HS-908PC is certified by Underwriters Laboratories (UL) to meet all safety standards of the United States and Canada. The unit carries the "cULus" certification mark to indicate that it has undergone rigorous testing and meets the country's safety requirements.
Specifications:
- AC Power Rating: 120V, 15A
- Outlets: 8 total, including 2 high-current outlets
- Surge Protection Rating: 3240 joules
- EMI/RFI Noise Filtering: 50dB
- Voltage Protection: Over 138 volts - Under 88 volts
- Power Cord: 14 AWG conductors, 6 feet in length, right-angle flat plug
- Circuit Breaker: 15A, resettable
- Dimensions: Width 16.875", Height 1.763", Depth 8.9375"
- Weight: 5.7 pounds
