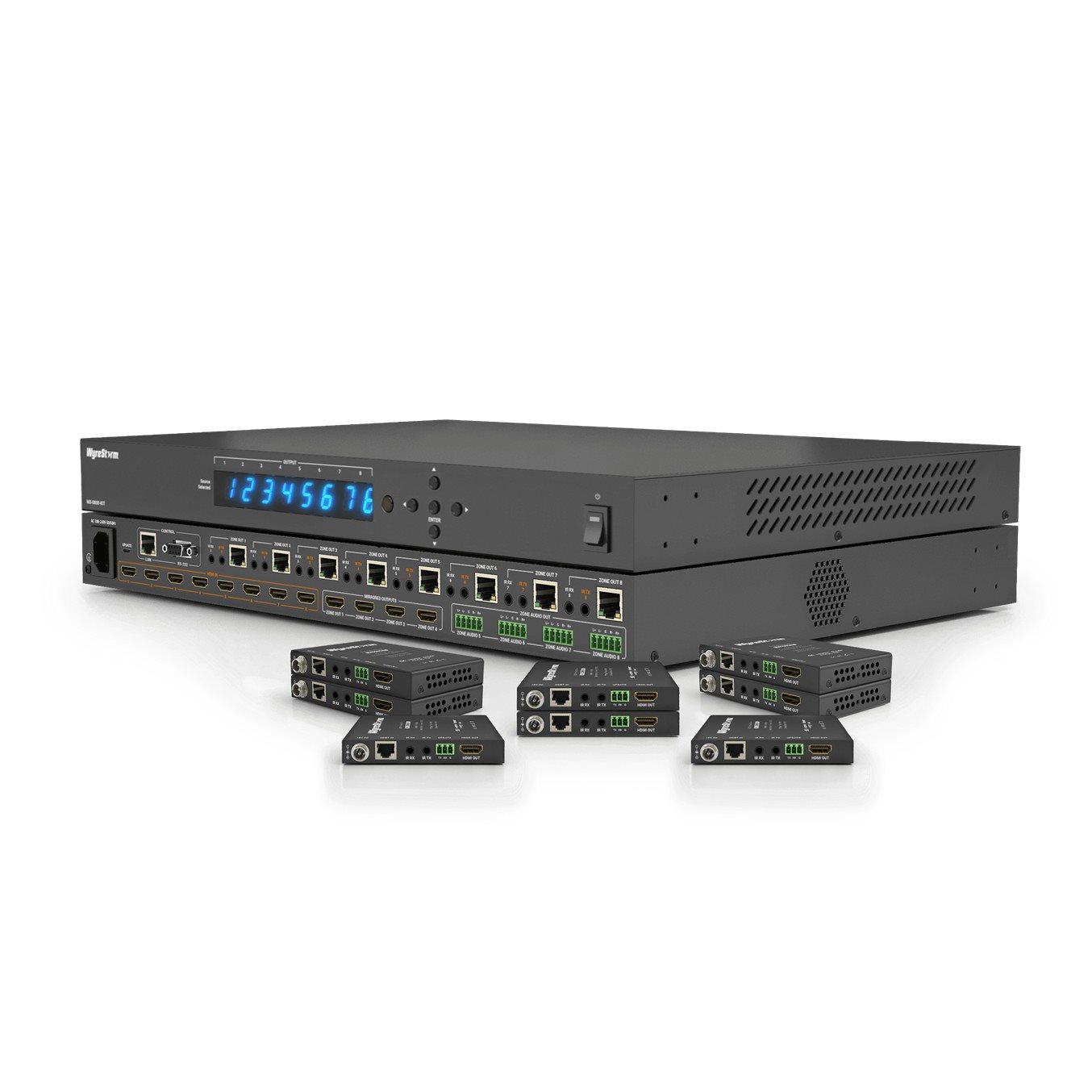

8×8 4K UHD HDBaseT Matrix Kit

The MX-0808-KIT v2 gets a make over, sharing many of the same powerful features of version 1, but with a vision of lite commercial installations in mind. Offering the same transmissions of 4K UHD up to 35m/115ft, but now up to 8 HDBaseT outputs with included receivers. Additionally, version 2 is equipped with 4 mirrored outputs, which can be paired with any of our HAOC hybrid optical HDMI cables to connect to 4 additional screens. Also new and fitting are 4 balanced analog audio outputs 2ch support to connect to ceiling/over-hanging speakers or to an audio amplifier. Lastly, still enjoy the same great features of version 1, including CEC triggering, A/V mute and standby mode to extend the life of the matrix during downtime.

Features

• True 8×8 matrix with 8 HDBaseT zones and 4 mirrored HDMI outputs
• SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
• WebUI includes full EDID management to copy EDID from connected devices
• Independent user control interface with separate password-protected installer settings
• Personalize switching interface with source and output labelling
• Hide unused I/O for cleaner appearance and navigation
• API triggered standby mode puts unit into low power state during downtime
• 2-way IR for far-end device control from control system or source control from a zone.
• US, UK, EU & AU Power cables included
• Compact 1U chassis with adjustable depth rack mounting brackets included

Specifications

AUDIO & VIDEO

Matrix:

• Inputs - 8x HDMI: 19-pin type A
• Outputs - 8x HDBT: 8-pin RJ-45 Female, 4x 5-pin Balanced Analog Audio

Receivers:

• Inputs - 1x HDBT: 8-pin RJ-45 Female
• Outputs - 1x HDMI: 19-pin type A

Output Video Encoding: HDBaseT Class B

Encoding Data Rate: 9.2Gbps

End to End Latency: 10μs (micro seconds)

Audio Formats:

• HDMI/HDBaseT: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X
• Analog Output: 2ch PCM

Video Resolutions (Max):

• 1920x1080p @60Hz 16bit
• 3840x2160p 10bit 4:2:0 HDR
• 3840x2160p @30Hz 8bit 4:4:4
• 3840x2160p @60Hz 8bit 4:2:0

Supported Standards: DCI | RGB | HDR10 | HLG | BT.2020

Maximum Pixel Clock: HDBaseT: 340MHz

In the Box:

• 1x MX-0808-KIT Matrix
• 8x MX-KIT-RX Receivers
• 1x AC Power Cord (UK/US/EU)
• 1 x Remote (Battery not included)
• 8x IR Emitters
• 8x IR Receivers
• 2x Matrix Mounting Brackets (2 per RX)
• 1x Quickstart Guide
