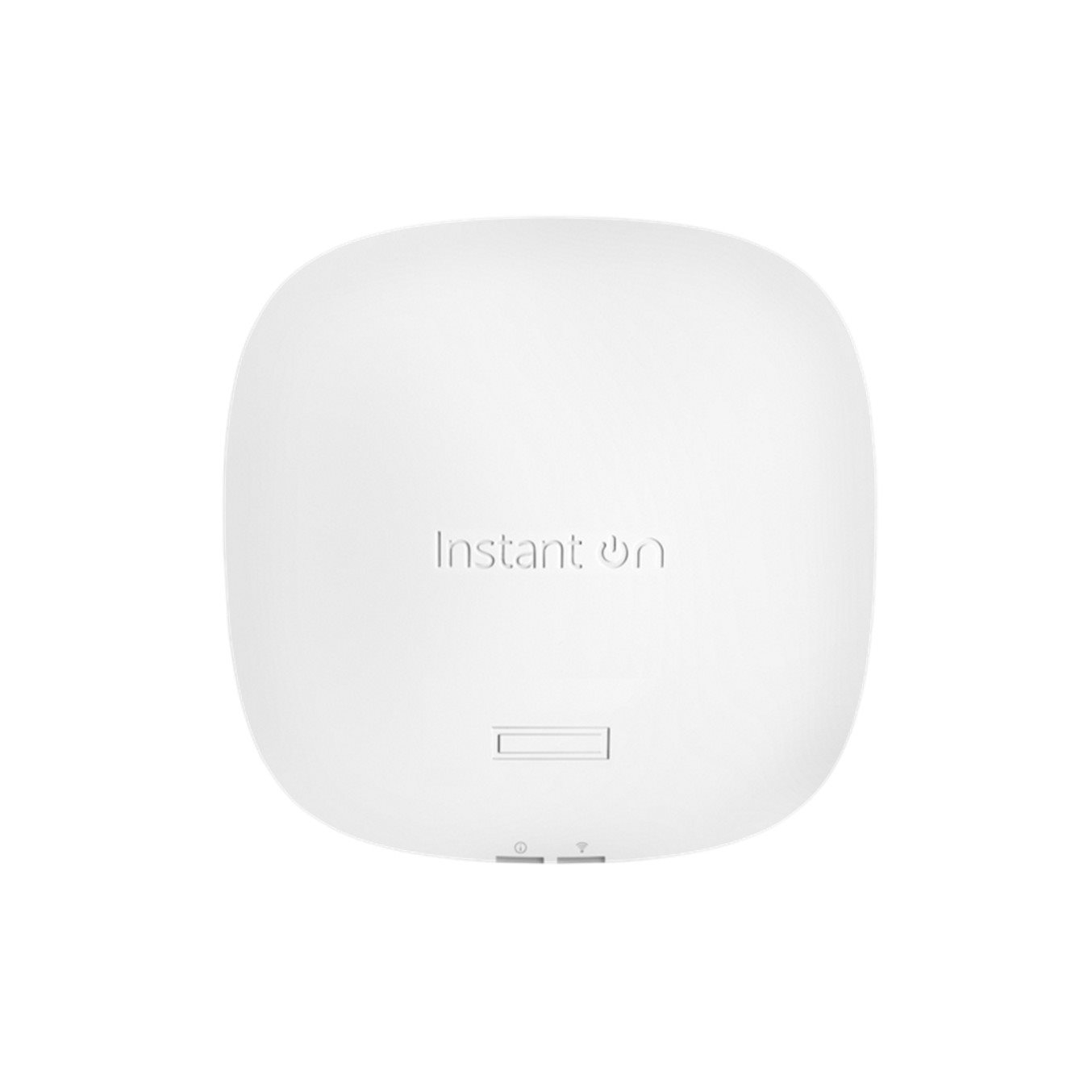

HPE Networking Instant On Access Point Bundle with PSU (US) AP25

The HPE Networking Instant On Access Points AP25 is our top performer, with a 4x4 antenna array that supports 4 spatial streams to provide coverage and speed in device-dense networks, and is best if used in common areas where 100 or more of your customers can gather. The AP25 2.5 GbE uplink port enables more network bandwidth to support the wireless maximum 5.3 Gbps throughput for connected clients compared to traditional 1 GbE uplink in other Wi-Fi 6 access points.

Features

• Provides a high performance Dual Radio 802.11ax AP with 4 spatial streams (4X4) for higher capacity and coverage
• This series features maximum data rates of 4.8 Gbps in the 5 GHz band and 574 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 5.3 Gbps)
• Includes 2.5 Gigabit Ethernet uplink port and 160 MHz channel bandwidth for increased wireless throughput

• Wi-Fi 6 certification supports all mandatory 802.11ax features that include MU-MIMO, OFDMA, TWT, and more
• Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access
• Instant On mobile app and/or cloud-based web portal allows for easy network management onsite or remotely

Specifications

Wi-Fi antennaAntennas: Dual omni-directional 4x4 MU-MIMO
Antenna Gain: 3.7 dBi in 2.4GHz 4.5 dBi in 5 GHz
Maximum transmit power:
5 GHz band: +24 dBm (+18 dBm per chain, 6 dB MIMO gain)
2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)

Ports1x 2.5 GbE Base-T uplink port
DC power connector
Bluetooth Low Energy (BLE)
LED status indicators
Reset/LED control button
Kensington security slot

CertificationsWi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

WarrantyInstant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period.
Community support is available for the life of the product.

Connectivity, standardUltra-fast 802.11ax, 4x4:4

Input voltagePoE: 802.3at (class 4) DC power (12V)

Note: Power sources are sold separately unless you purchase the bundle SKU

Power consumptionMax power consumption (worst-case): 20.1W (PoE), 15.9W (DC)

MountingCeiling/Wall mount clip

Radio coverageDual-radio 802.11ax
4x4 5 GHz MU-MIMO
2x2 2.4 GHz MU-MIMO

Weight1.18 kg (2.6 lb)

Dimensions5.1 x 20.3 cm (2 x 8 x 8 in)

DifferentiatorIn the Box: Bundle includes access point, PSU, mount kit, and Ethernet cable.
