ACP-AZ-P250
Click the image to magnify
AudioControl

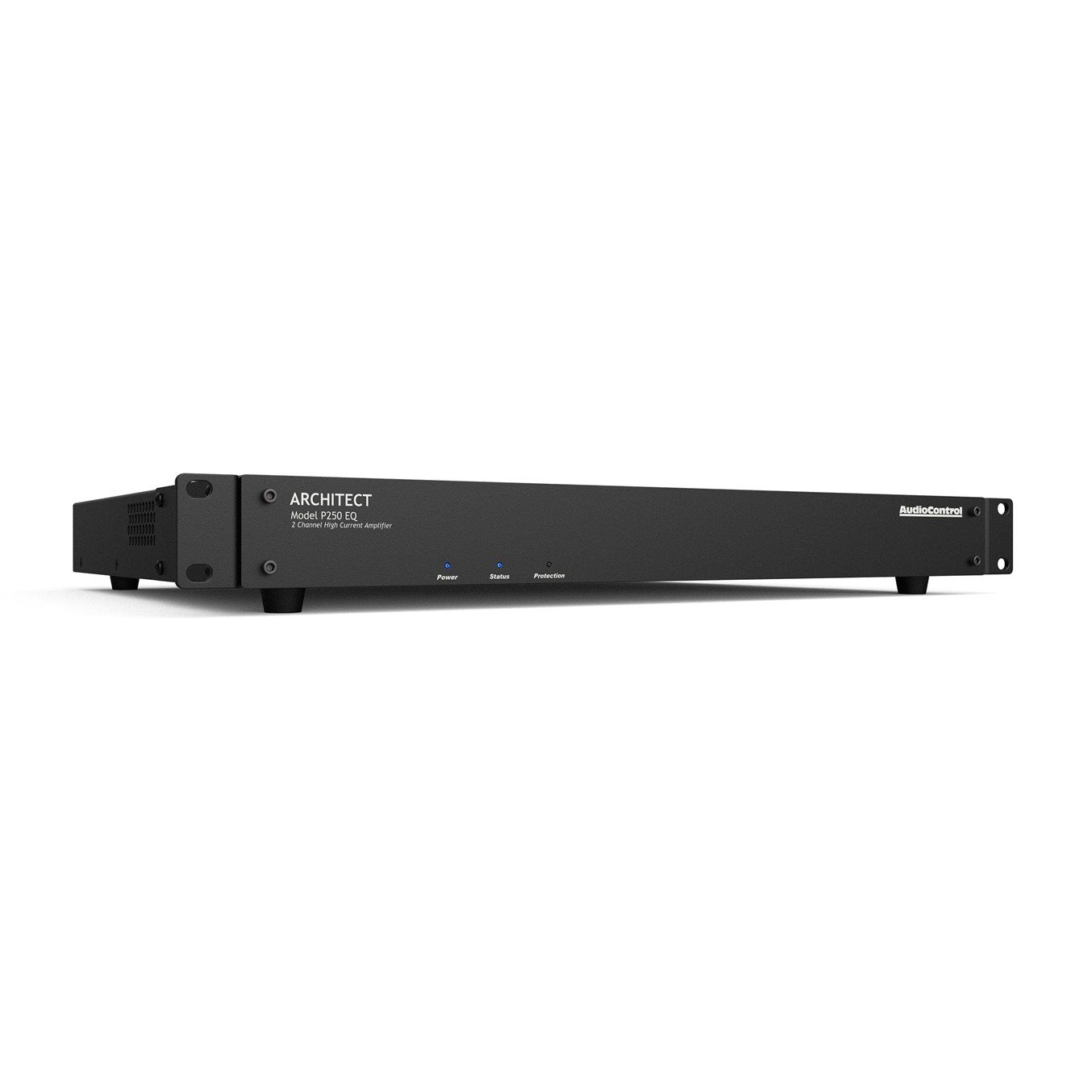

AudioControl ACP-AZ-P250
2-Channel High-Current Amplifier w/EQ
Call for availability
Retail: $1659.00 EA


2-Channel High-Current Amplifier with EQ

 The Architect Model P250 EQ is a high-power, 2-channel amplifier engineered with an emphasis on sound quality to deliver clarity and tonally balanced sound into any loudspeaker.

At only one rack space high, the P250 EQ delivers solid performance found in much larger solutions. Constructed with a high-current overbuilt power supply, an advanced filter stage, and fast-switching, impedance-matching output transistors, the P250EQ delivers 250 watts per channel into 4/2-ohm loads and 180 watts per channel into 8 ohms. The P250 EQ reproduces nuanced detail from any style of music with the power to control even the hardest to drive loudspeakers effortlessly.

Features

  • 250 Watts Per Channel at 4/2 Ohms
  • 180 Watts Per Channel at 8 Ohms
  • 500 Watts at 8/4 Ohms Bridged
  • High Current Design, 2 Ohm Stable
  • LightDrive™ Anti-clipping Protection
  • Stereo Coaxial and TOSLINK Digital inputs
  • Stereo Coaxial Digital Loop Output
  • Stereo Analog Input with Loop Output
  • Signal Detection Switch Input
  • Input Prioritization & Signal Sense Switching
  • Selectable EQ Presets
  • Shallow Mounting Depth (13.5”)
  • Compact 1U Design
  • Unparalleled Energy Efficiency



Specifications

INPUTS
Inputs: 1 Analog Stereo Main, 1 Digital Main (Coaxial / TOSLINK), 1 Analog SDS
Analog Input Sensitivity: 1 Vrms for full output, level at maximum
Gain: 27 dB		 GENERAL
Power Consumption (Standby): 1.5 W
Power Consumption (Idle / All Channels Off): 18 W
Power Consumption (All Channels Active): 24 W
Power Consumption (loud listening level): 87 W
Power Consumption (maximum): 591 W
BTU/Hour Heat Dissipation (Standby): 5.1
BTU/Hour Heat Dissipation (Idle / All Channels Off): 61
BTU/Hour Heat Dissipation (All Channels Active): 82
BTU/Hour Heat Dissipation (loud listening level): 108
BTU/Hour Heat Dissipation (maximum): 268
Protection: clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads

OUTPUTS
Amplifier Channels: 2
Power Output:

  • 180 W per channel into 8 Ohms
  • 250 W per channel at 4/2 Ohms
  • 500 W Bridged Mono at 8/4 Ohms

Minimum Speaker Load: 2 Ohms

 WEIGHT & DIMENSIONS
Dimensions: 19” W w/rack ears / 17” w/o rack ears  x 13.5” D x 1.75” H (1 U)
Weight: 15.0 lbs. (6.8 kg)

PERFORMANCE
Frequency Response: ±0.25 dB, 20 Hz to 20 kHz, 8 Ω Load
Signal to Noise: >110 dB, A-weighted, ref Full Output +/- 3db
THD+N @ Rated Power:

<1% @ 8 Ω per ch.

<0.2% @ 4 Ω per ch.

<0.07% @ 2 Ω per ch.

Crosstalk: >80dB @ 1 kHz

DAC Specs: 32 to 192 kHz sample rate, 16-/24-bit depth

 IN THE BOX
Architect Model P250 EQ, Power Cord, Manual, Warranty
CONTROL
Remote Power Trigger: +12 VDC
