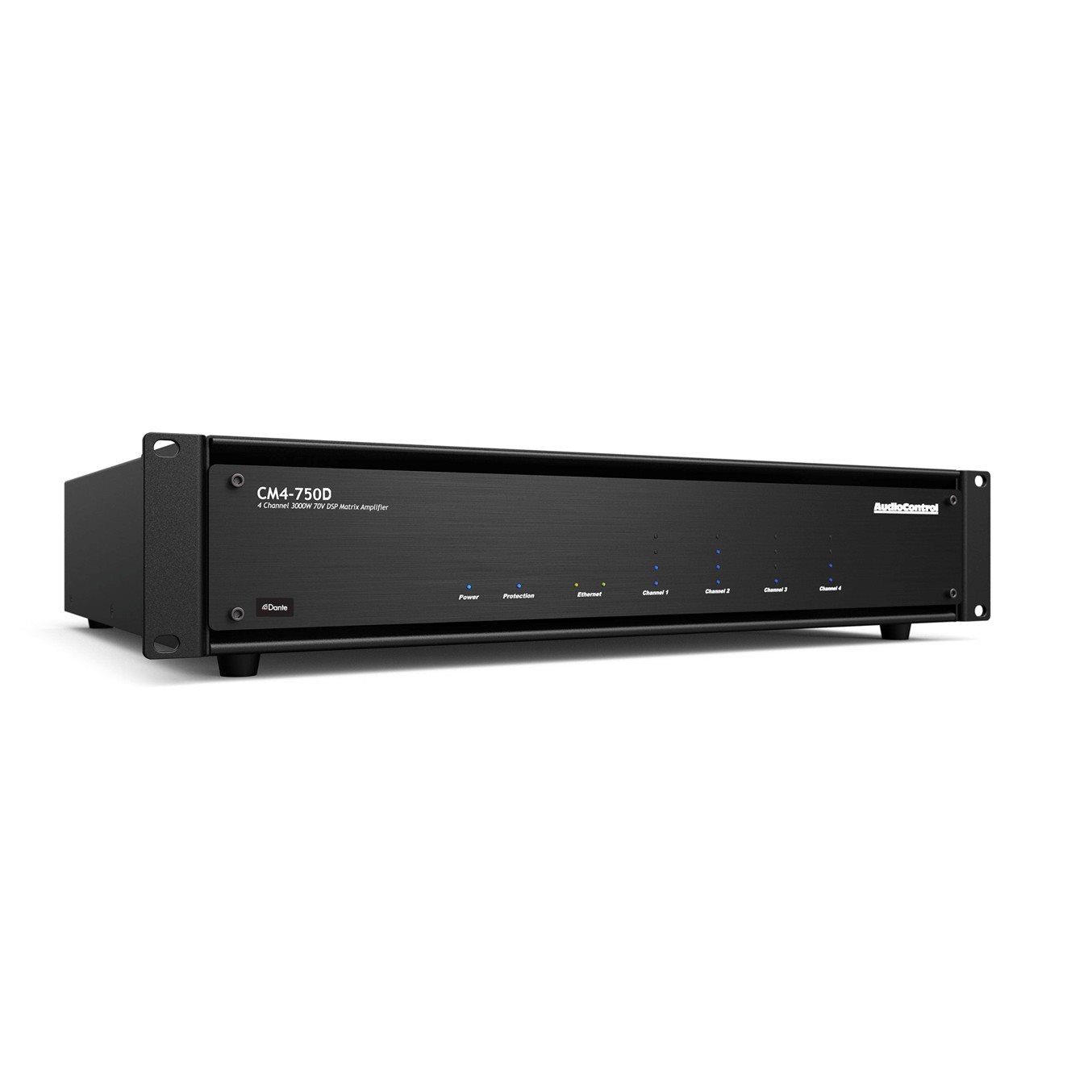

4-Channel High-Power Dual Mode 70 Volt DSP Amplifier with Dante

AudioControl’s 70 volt amplifier solutions deliver superior quality power and sound through a large number of speakers, ideal for outdoor audio systems as well as a large variety of commercial A/V applications. DSP control and signal matrixing capabilities from AudioControl’s award-winning Director Series amplifiers enable integrators to precisely tailor the sound to any environment. Choose from balanced/unbalanced analog, microphone and digital inputs. Outputs can be configured in mono or stereo, giving integrators the configuration flexibility they need to accommodate any system architecture. For maximum efficiency, system setup and diagnostics can be managed remotely via an IP using a responsive web interface.

DANTE SUPPORT

​Dante audio networking uses standard IP networks to transmit high-quality, uncompressed audio with near-zero latency. Dante is the audio networking choice of nearly all professional audio manufacturers.

Features

• Network DHCP Signal Matrix Amplifier With Volume Control
• Dante Port
• 4 Channels x 750 Watts at 70/100 V or 2Ω/4Ω (All Channels Driven)
• 4 Channels x 625 Watts at 8Ω (All Channels Driven)
• 1500 Watts of Bridged Power at 70/100 V
• 1250 Watts of Bridged Power at 8 Ω
• Digital Signal Processing (DSP) Performance
• Built-In Speaker Optimization Profiles
• Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
• Built in Matrix Delivering Analog or Digital Inputs to be Routed To Any Zone or Digital Bus Output
• Network Programmable Graphic & Parametric Equalization with User Memories
• Assignable Names for All Zones & Amplifier
• Digital Signal Sense
• Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
• AudioControl LightDrive Anti-Clipping Speaker Protection
• Digital and Analog Inputs with Digital and Analog Pass Thru / Loop Outputs
• Dual Digital Audio Bus Outputs
• Commercial and Home Installations

Specifications
