Audio
|
|
|
Amplifiers
|
3 class-D digital amplifiers precision-tuned for the speaker's unique acoustic architecture.
|
|
Low-frequency driver
|
One 3.5 x 4.4 in (90.8 x 111.9 mm) carbon filled-polypropylene
|
|
High-frequency drivers
|
Two 0.63 in (16 mm) silk dome
|
|
Frequency Range1
|
45 Hz-20 kHz ±3 dB
40 Hz-20 kHz -10 dB
|
|
Maximum Long-Term SPL2
|
90 dB @ 1 m with PoE+
|
|
Maxium Short-Term SPL3
|
98 dB @ 1 m with PoE+
|
|
Nominal Coverage Angle4
|
240° horizontal x 140° vertical
|
|
Directivity Q5
|
1.8
|
|
Directivity Index5
|
2.5 dB
|
|
Microphones
|
The far-field microphone array uses advanced beamforming and multichannel echo cancellation for quick and accurate voice control and Trueplay tuning. Toggle off the mic switch to electrically disconnect the onboard microphones.
|
|
Adjustable EQ
|
Use the Sonos app to control bass, treble, and loudness.
|
|
TrueplayTM
|
This software measures the acoustics of the room then fine-tunes the EQ. Compatible with iOS and Android devices.
|
|
Integrated Content Streaming
|
Amazon Music, Apple Music, Cloud Cover Music, Mood Media, Sonos Radio, Soundtrack Your Brand, Spotify, and many more.
For a complete list, please visit: support.sonos.com/services
|
|
Details & Dimensions
|
|
|
Product Dimensions (W x H x D)
|
4.72 x 7.18 x 5.14 in (120 x 182.5 x 130.5 mm)
|
|
Net Weight (Each)
|
4.48 lb (2.03 kg)
|
|
Shipping Weight (Pair)
|
12.35 lb (5.6 kg)
|
|
Colors
|
Black, White
|
|
Finish
|
Matte
|
|
Threaded insert
|
Included optional eyebolt can be used to provide a secondary safety attachment point to the speaker.
|
|
Hook receptacle
|
Increases stability when the speaker is paired with the Surface Mount and positioned in a non-portrait orientation.
|
|
Controls
|
Use the touch controls to play, pause, skip, replay, adjust the volume, mute your voice assistant, and group or ungroup Sonos products.
|
|
Bluetooth button
|
Press to pair with a Bluetooth device.
|
|
Microphone switch
|
Toggle off to electrically disconnect the onboard microphones.
|
|
LEDs
|
An LED on the front of the product indicates power and mute status. White LED on top of the product indicates voice assistant status. A pair of LEDs on the network port indicate power status (yellow) and network activity (green).
|
|
Operating Temperature
|
32º to 104º F (0º to 40º C)
|
|
Humidity Range
|
Operates in non-condensing humidity of 5—95%
|
|
Power & Connectivity
|
|
|
Power Method
|
PoE+ (802.3 at), PoE (802.3 af)
|
|
Power Consumption (Max PoE+, Max PoE, idle)
|
30 W, 15.4 W, 2.4 W
|
|
Connector Type
|
1 x RJ45
|
|
Ethernet port
|
100Base-T network connection and power
|
|
Wired Networking Interface
|
100BaseTX, Ethernet RJ45
|
|
Wireless Networking Interface6
|
Compatible with WiFi 6. Connect to WiFi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router
|
|
Bluetooth
|
Bluetooth 5.0 supports audio streaming from any Bluetooth-enabled device.
|
|
CPU
|
Quad Core
4xA55 1.4 GHz
|
|
Apple AirPlay 2
|
Works with AirPlay 2 on Apple devices iOS 11.4 and higher.
|
|
Direct Streaming Formats
|
Bluetooth, Apple Airplay 2, Spotify Direct Control
|
|
What's in the box?
|
|
|

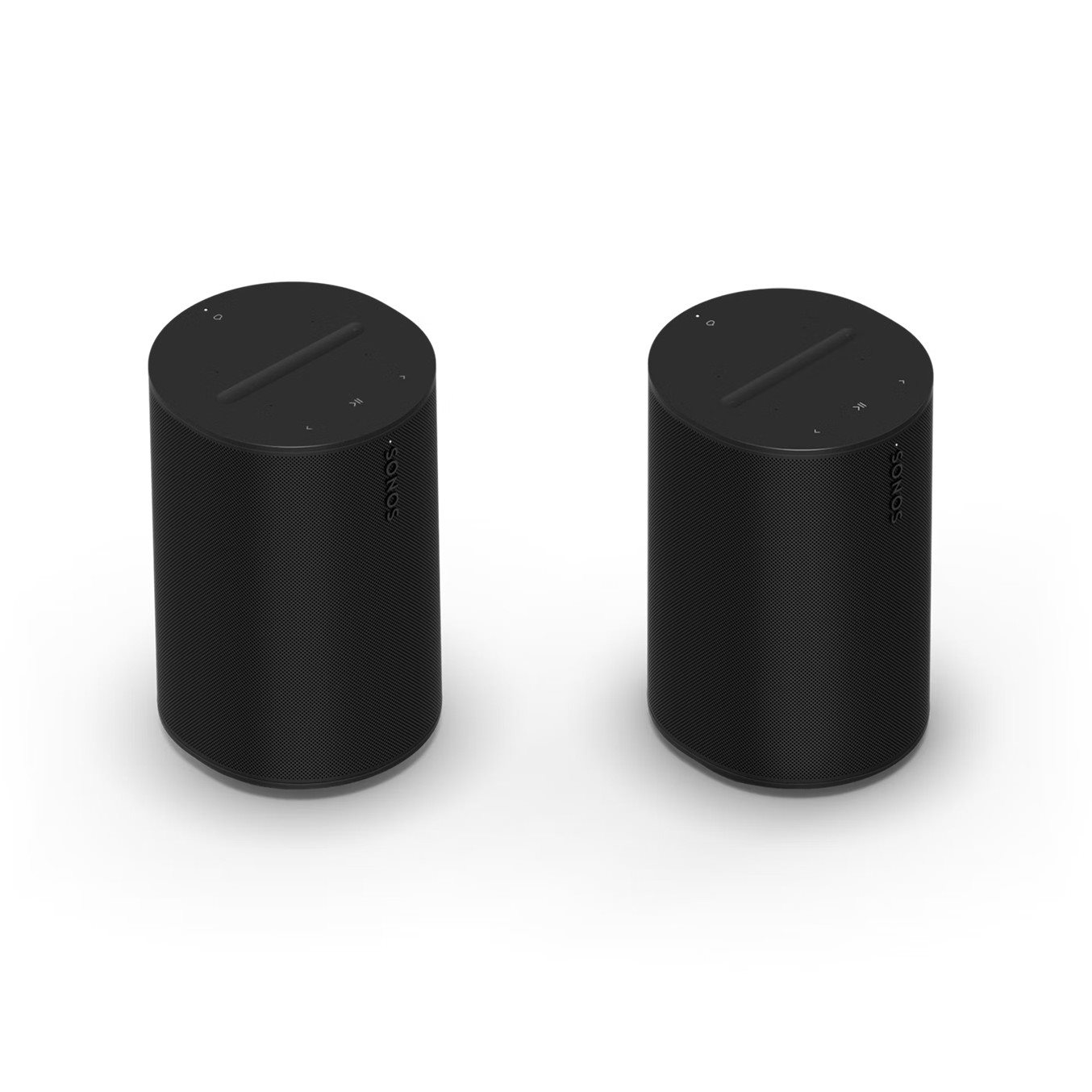

2 Sonos Era 100 Pro speakers
|
Product(s)
|
|
2 eyebolts
|
Eyebolts
|
|
Documentation
|
Quickstart Guide and legal/warranty information
|
|
Requirements
|
|
|
Internet connection
|
Access to the internet
|
|
Power sourcing equipment (PSE)
|
Third-party device, such as a PoE network switch or injector. See FAQ for more information
|
|
Ethernet cable
|
Category 5 (CAT5) or higher
|
|
Sonos app
|
The latest generation of the Sonos app running on a compatible device
|
