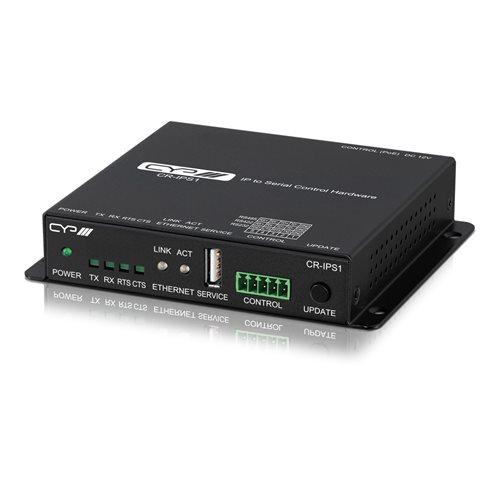

CR-IPS1 IP to Serial Controller with a Single I/O Port

The CR-IPS1 Control System Centre is for users to control a single Serial device of any variety. It supports one RS-232/422/485 port. Users can connect device and control it via a 3 (or 5)-pin adapter cable to send RS-232/422/485 commands from this unit. Comprehensive user control interfaces are available, including WebGUI, Telnet, and console (RS-232 in). This unit can be powered either by a 12V/1.25A adapter or Power over Ethernet (PoE), allowing it to be powered directly from a standard PoE network switch without the need for an external power adapter, providing incredible installation flexibility. The LEDs on the board provide status indicators for users to check: power and Ethernet status. It supports IEEE 802.1x RTS/CTS protocol to avoid hidden stations. The unit also provides a hotkey for convenient firmware updates.

Features

• Support one RS-232/422/485 port
• Support multiple user control interfaces including WebGUI, Telnet and RS-232/422/485
• Support IEEE 802.1x RTS/CTS protocol
• Support Power over Ethernet (PoE), providing incredible installation flexibility
• LED indicates the units status for confirmation
• Firmware can be easily updated in the field either via USB or using the hotkey

Specifications

Interfaces

Pass-through Ports

• 1×LAN (RJ-45)
• 1xRS-232/422/485(5-pin Terminal Block)

Service Port 1xUSB 2.0 (Type-A)

Power

Power Supply 12V/1.25A

Power Consumption 4.75W

Enclosure

Chassis Material Metal (Steel)

Chassis Colour Black

Dimensions (W×H×D)

• 128mm×25mm×108mm [Case Only]
• 128mm×25mm×116.3mm [All Inclusive]

Weight 367g

Field Firmware Update

USB Flash Drive and WebGUI
