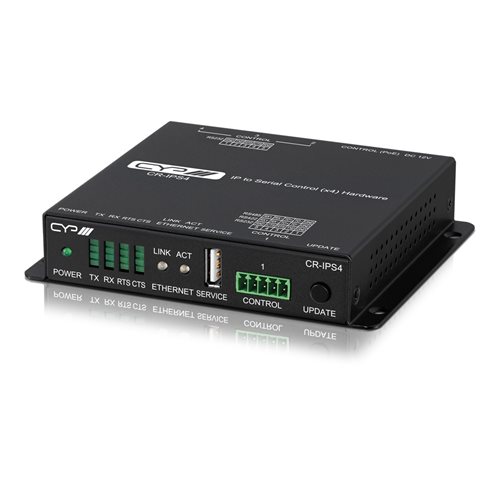

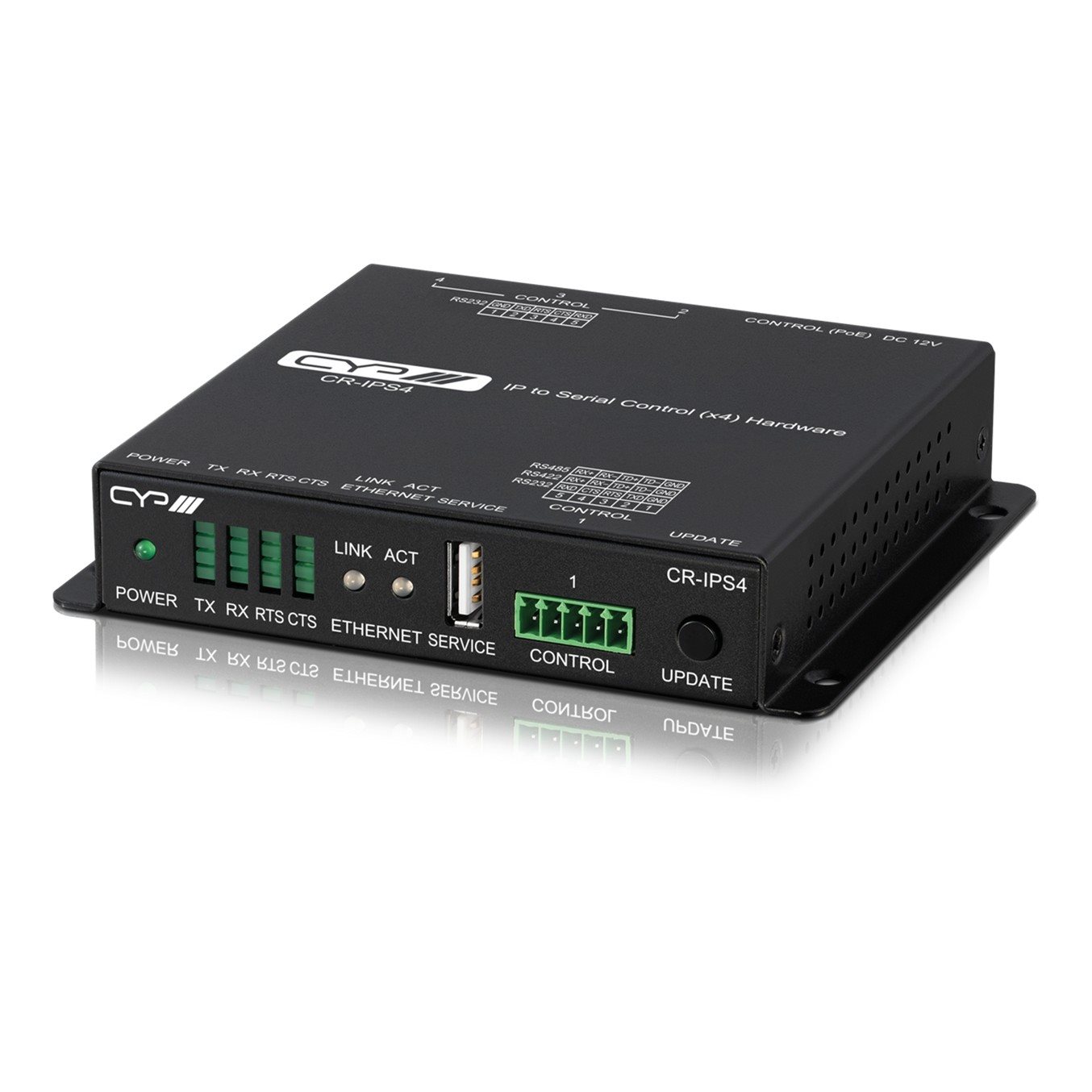

CR-IPS4 IP to Serial Controller with 4 x I/O Ports

The CR-IPS4 is a Control System Centre for users to control a variety of serial devices. This four way version supports RS-232 at each I/O port and 1 port for the additional use of RS-422 or RS-485. Users can connect up to four devices simultaneously and control them via a 3 (or 5)-pin adapter cable to send RS-232/422/485 commands from this unit. Comprehensive user control interfaces are available, including WebGUI, Telnet, and console (RS-232 in). This unit can be powered either by a 12V/1.25A adapter or Power over Ethernet (PoE), allowing it to be powered directly from a standard PoE network switch without the need for an external power adapter, providing incredible installation flexibility. The LEDs on the board provide status indicators for users to check: power and Ethernet status. It supports IEEE 802.1x RTS/CTS protocol to avoid hidden stations. The unit also provides a hotkey for convenient firmware updates.

Features

• Support one RS-232/422/485 port and three RS-232 ports
• Enable control up to four devices simultaneously
• Support multiple user control interfaces including WebGUI, Telnet and RS-232/422/485
• Simple configuration of macros, triggers settings via the WebGUI
• Support IEEE 802.1x RTS/CTS protocol
• Support Power over Ethernet (PoE), providing incredible installation flexibility
• LED indicates the unit’s status for confirmation
• Firmware can be easily updated in the field either via USB or using the hotkey

Specifications

Interfaces

Pass-through Port

• 1×LAN (RJ-45)
• 1xRS-232/422/485(5-pin Terminal Block)
• 3xRS-232(5-pin Terminal Block)

Service Port 1xUSB 2.0 (Type-A)

Power

Power Supply 12V/1.25A

Power Consumption 5.736W

Enclosure

Chassis Material Metal (Steel)

Chassis Colour Black

Dimensions (W×H×D)

• 128mm×25mm×108mm [Case Only]
• 128mm×25mm×116.3mm [All Inclusive]

Weight 367g

Field Firmware Update

USB Flash Drive and WebGUI
