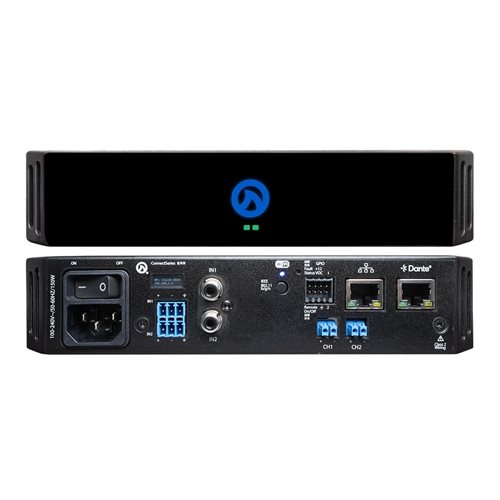

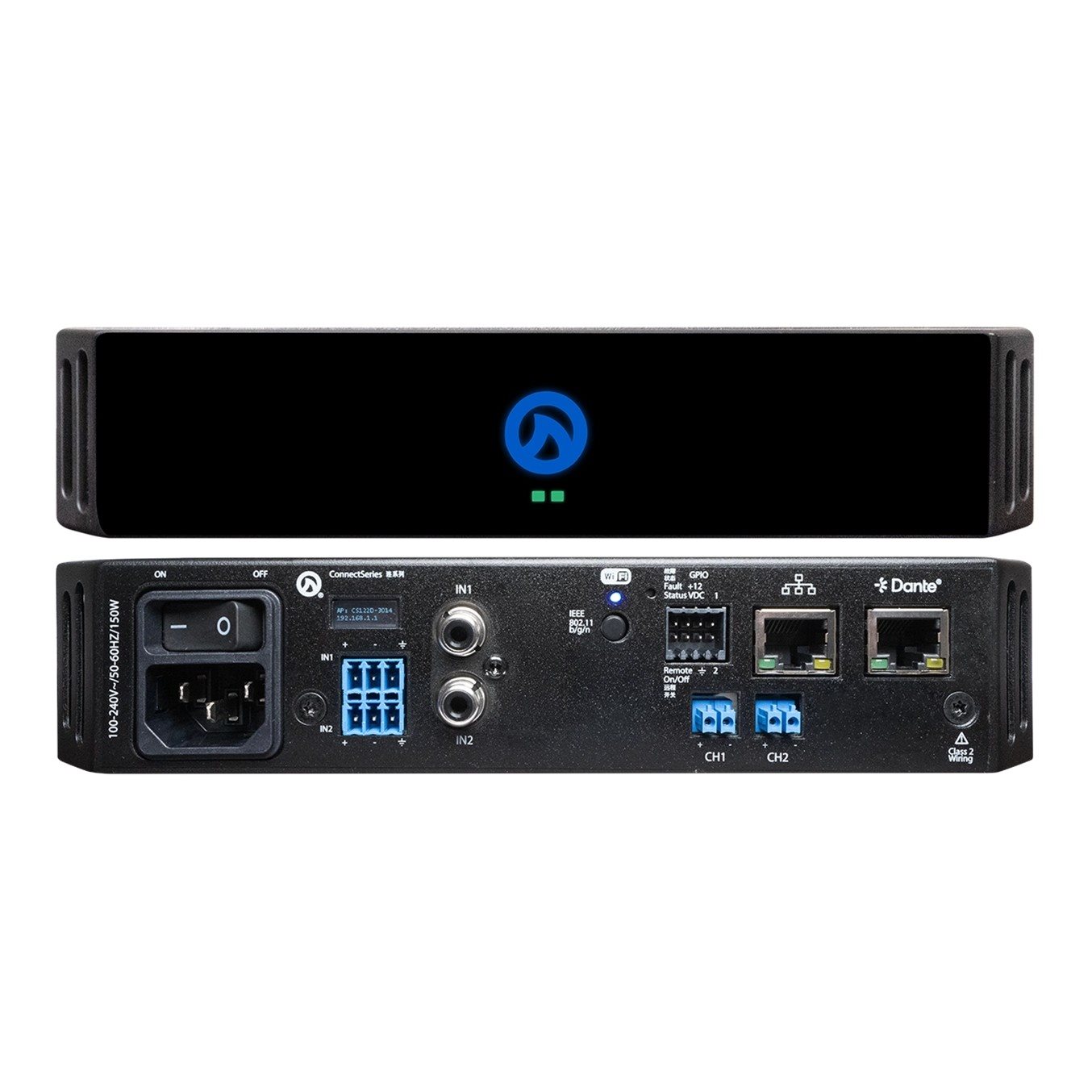

CS122D CONNECT SERIES HALF-RACK SMART AMP | 2 CHANNELS | 120W PER CHANNEL
The Connect Series 122D delivers one of the most feature-rich amplifier experiences available in the industry – in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, two amplifier channels with Lo-Z, 70V, or 100V selectable by channel and D-units include Dante and AES67 connectivity. All models boast three different methods of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.
Features
- No software to download; browser-based and works on any device
- Remote control and monitoring from anywhere in the world — no additional costs required
- A vast selection of third-party API’s for ultimate system integration
- Simplifies control across large audio installs and includes offline mode
Specifications
AUDIO
Inputs
- Analog: 2 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity
- 2 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity
- ***Note – Unbalanced and RCA inputs share the same analog input channel
- Dante: 2 x 2 Dante at 48kHz, Multicast or Unicast
- AES 67: Configurable via the Dante Controller software
THD+N 0.1% (20Hz to 20kHz)
FREQUENCY RESPONSE 20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
SIGNAL TO NOISE LEVEL 102dB (20Hz to 20kHz referenced to 8Ω)
CROSSTALK 70dB (20Hz to 20kHz)
AMPLIFIER OUTPUT CLASSIFICATION Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSP
DSP ARCHITECTURE Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
INPUT MATRIX & MATRIX MIXER Routable matrix; any input can be mixed to any output
CROSSOVERS Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
PARAMETRIC EQ 8 Band Parametric EQ per channel
OUTPUT DELAY 100ms per channel
OUTPUT PROTECTION DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
USER ADJUSTABLE LIMITING Peak Voltage and RMS Voltage
LOAD MONITORING Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
CONTROL, MONITORING, NETWORKING
USER INTERFACE Web Browser User Interface, 3rd Party API control, Cloud Control, or SharkWare
EXTERNAL I/O
- External I/O In: Toggles Remote On/Off
- External I/O Out: Indicates Amplifier Health
- 2 general Purpose input and output pins for general input
- Triggering and output statuses – Coming Soon
OPERATION
AC MAINS 100VAC – 240VAC +/- 15% 50Hz or 60Hz
POWER SUPPLY Universal Switch Mode Power Supply
PHYSICAL
DIMENSIONS (L x W x H)
- Product: 11.82” x 8.58” x 1.71″ (300.11mm x 218mm x 43.5mm)
- Shipping: 18” x 11” x 2.75” (457.2mm x 300mm x 69.85mm)
WEIGHT 7lbs / 4.1kg | Shipping: Coming Soon
COOLING
- Front to Rear Variable Fan Speed Cooling
- Fan Noise at idle is 50dB @ 1m
- Fan Noise at 50% is 57dB @1m
- Fan Noise at full speed is 63dB @ 1m
